FG100P2: Heavy-Duty Rotary Geared Limit Switch

Introduction: Model FG100P2

The Anand Control Model FG100P2 is a robust rotary geared limit switch engineered for **heavy-duty applications**. Its durable construction makes it a reliable choice for larger cranes, industrial hoists, and machinery operating in demanding environments. Featuring two contacts, it provides precise control for upper and lower travel limits.

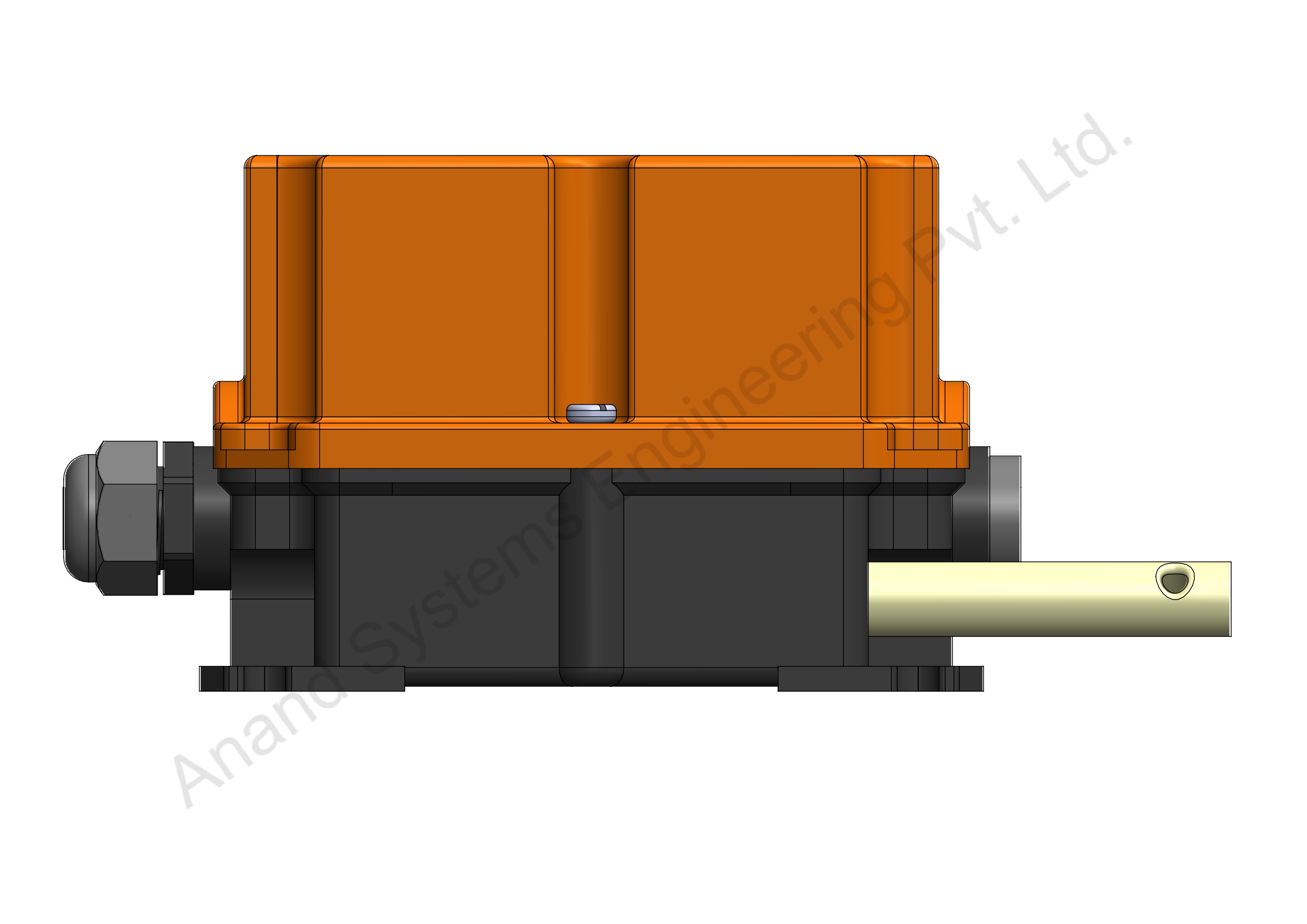

3D View of the FG100P2 Heavy-Duty Rotary Geared Limit Switch
Call 9137620579 for Enquiry Download 2D Drawing Download Catalog

Working Principle of FG100P2

The FG100P2 operates on the proven worm drive principle. The rotation of the connected machinery's shaft drives a worm gear inside the limit switch. This rotates a set of two cams. Each cam is independently adjustable, allowing you to precisely set the upper and lower stopping points for your equipment.

When a travel limit is reached, the cam triggers its associated electrical contact (NO or NC), which interrupts the motor circuit and stops the machine. This mechanism is crucial for preventing accidents, protecting the machinery from damage, and ensuring safe, repeatable operations in heavy-duty cycles.

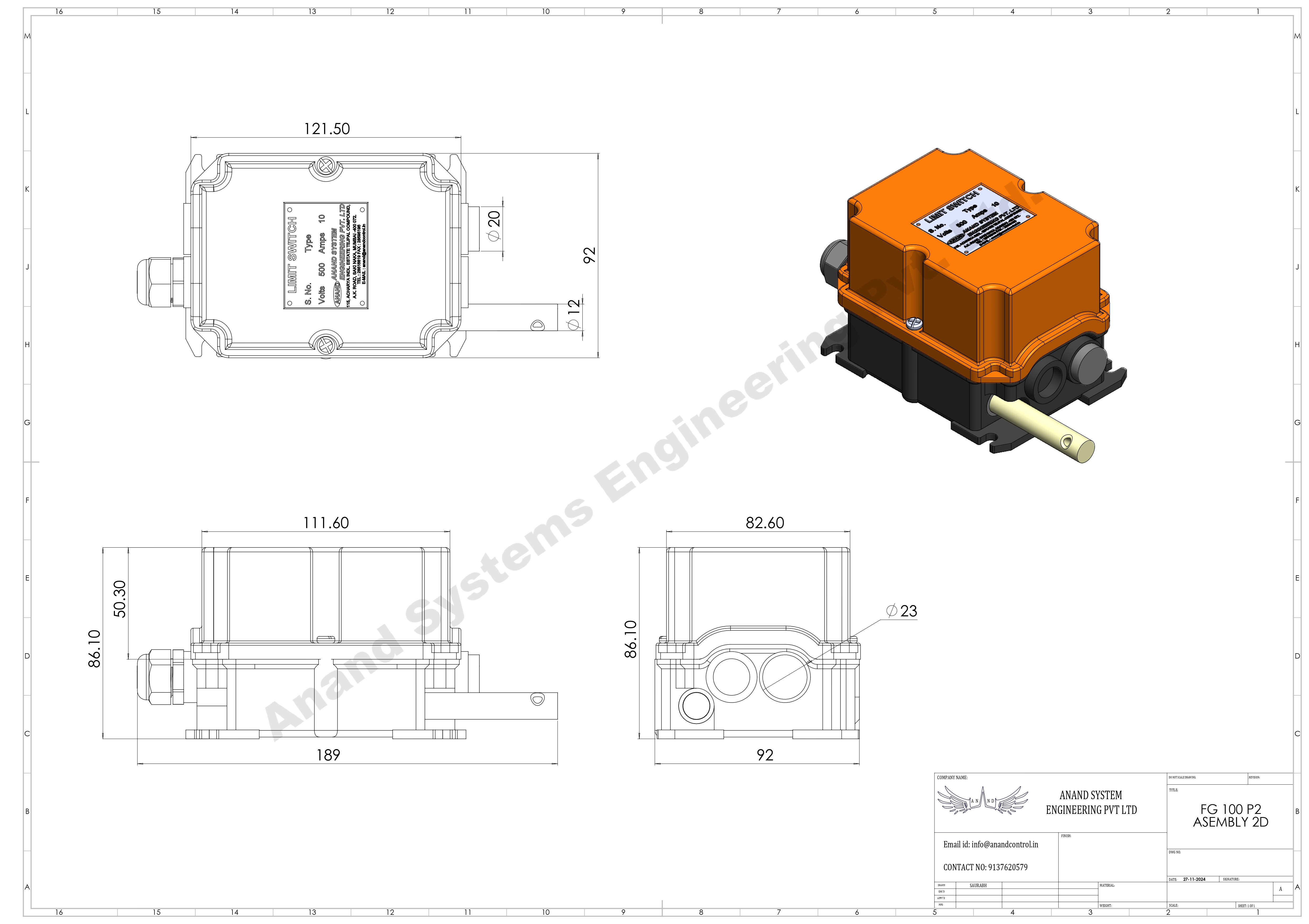

Working Diagram and 2D Drawing of FG100P2 Limit Switch

Heavy-Duty Applications for FG100P2

The robust build of the FG100P2 makes it suitable for demanding applications where durability and reliability are critical:

  • Large EOT & Gantry Cranes: For main hoisting and long travel motion.

  • Steel Mill and Foundry Equipment: Operating in high-temperature and high-load environments.

  • Bulk Material Handling Systems: Conveyor belts and other large rotating machinery.

  • Industrial Winches and Elevators: Ensuring safe and precise stopping.

FG100P2 Technical Specifications

Feature Specification
Body Material Black Nylon / Nylon
Cover Material High-Impact, Shock-Resistant Thermoplastic
Protection Degree IP-55 (as per IS-13947 Part-1, 1993): Dust-tight and protected against water jets.
Available Gear Ratios 1:12.5, 1:25, 1:50, 1:100 & 1:400
Drive Mechanism Worm Screw
Rated Insulation Voltage 500 VAC
Thermal Test Current 10 Amps
Maximum Speed 1200 RPM

Warranty & Support

The FG100P2 is covered by a 1-year manufacturer warranty from the date of dispatch.

Get a Quote for Your Heavy-Duty Application:
Contact our technical team for pricing and assistance. Call us at 91376-20579, email us at info@anandcontrol.in, or visit our website www.anandcontrol.in.
