FG100P4: Heavy-Duty, 4-Contact Rotary Limit Switch

Introduction: Model FG100P4

The Model FG100P4 is a high-performance rotary limit switch. It combines a **heavy-duty construction** with an **advanced 4-contact system**. This makes the FG100P4 an ideal solution for complex and demanding industrial automation and safety.

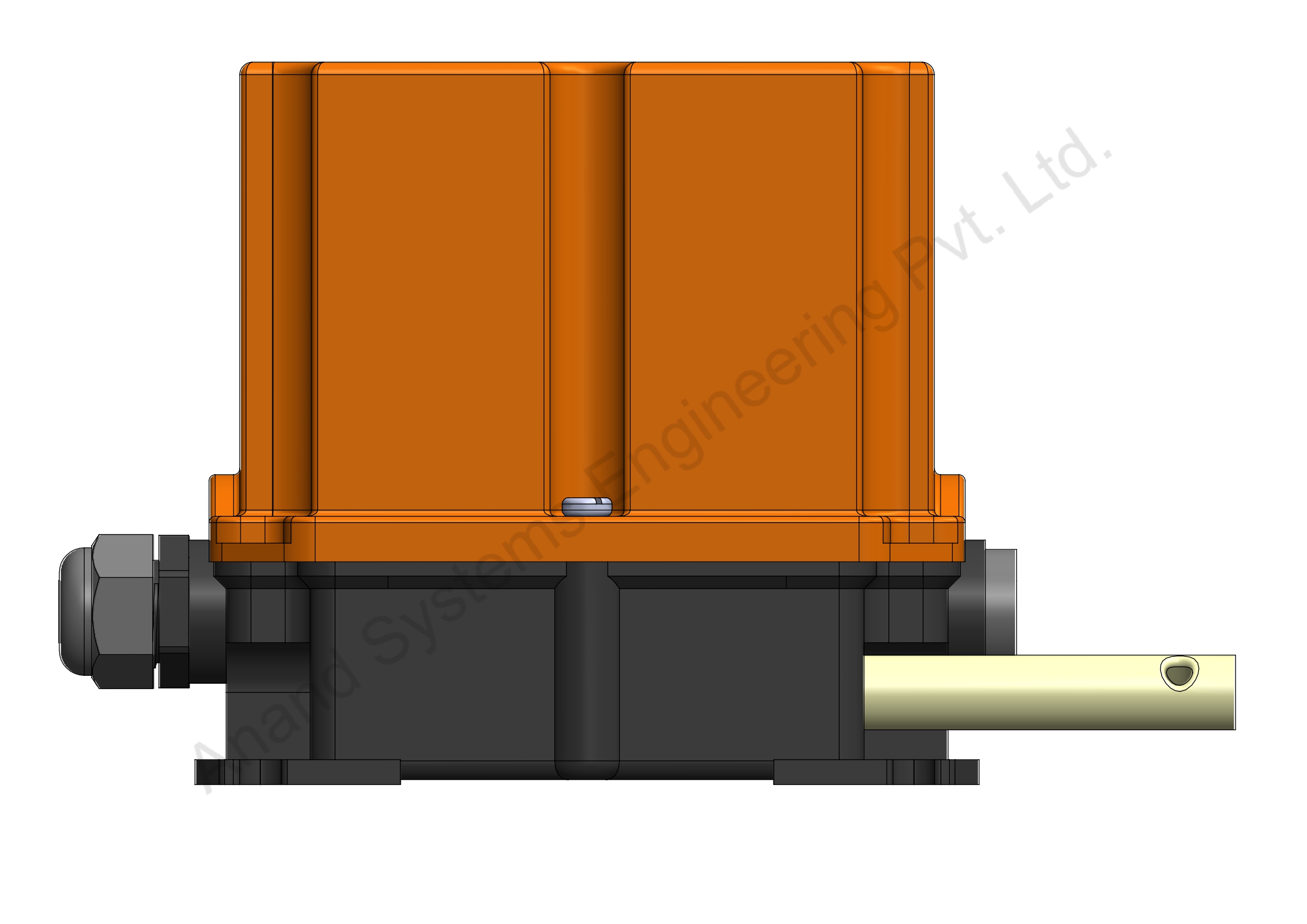

3D Model of the FG100P4 Heavy-Duty 4-Contact Rotary Limit Switch

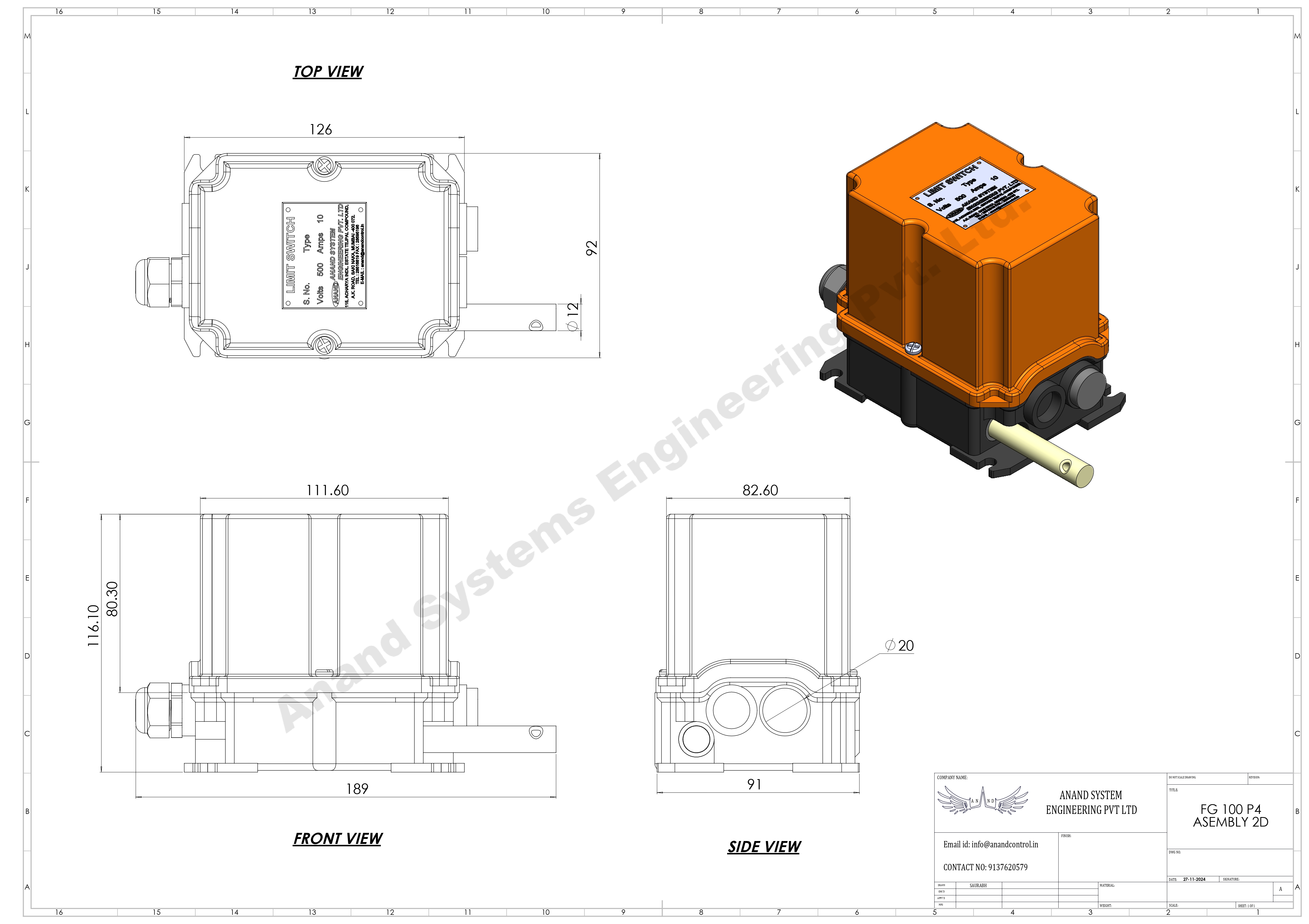

Call 9137620579 for Enquiry Download 2D Drawing Download Catalog

Advanced Control Principle of FG100P4

While built on the reliable worm drive mechanism, the FG100P4's four independent cams provide unparalleled control. This allows for multi-stage process control within a single, durable unit. For example, on a large industrial crane, the contacts can be configured to:

  • Contact 1: Reduce travel speed from high to medium.
  • Contact 2: Reduce travel speed from medium to low (creep speed).
  • Contact 3: Stop the crane (final upper/lower limit).
  • Contact 4: Activate an alarm or a secondary safety system.

This level of granular control is essential for safety and precision in heavy-duty, high-stakes environments.

Technical Drawing of the 4-Cam Control Mechanism of the FG100P4

Applications for FG100P4

The FG100P4 is engineered for applications where both extreme durability and complex control are required:

  • Automated Port and Container Cranes: For precise control of spreader height and travel.

  • Large-Scale Manufacturing & Assembly Lines: For triggering multiple actions at different process stages.

  • Mining Equipment and Conveyor Systems: For managing complex, multi-stage material handling.

  • Dam Gate and Sluice Control: Providing multiple levels of control for opening and closing large gates.

FG100P4 Technical Specifications

Feature Specification
Number of Contacts 4 Contacts (4NO or 4NC configurations)
Body Material Heavy-Duty Black Nylon
Cover Material High-Impact, Shock-Resistant Thermoplastic
Protection Degree IP-55 (as per IS-13947 Part-1, 1993): Dust-tight and protected against water jets.
Available Gear Ratios 1:12.5, 1:25, 1:50, 1:100 & 1:400
Rated Insulation Voltage 500 VAC

Warranty & Support

The FG100P4 is backed by a 1-year manufacturer warranty from the date of dispatch.

Contact for Quote or Technical Information:
For technical consultation and pricing, please contact the sales team. Call 91376-20579, email info@anandcontrol.in, or visit the website at www.anandcontrol.in.
