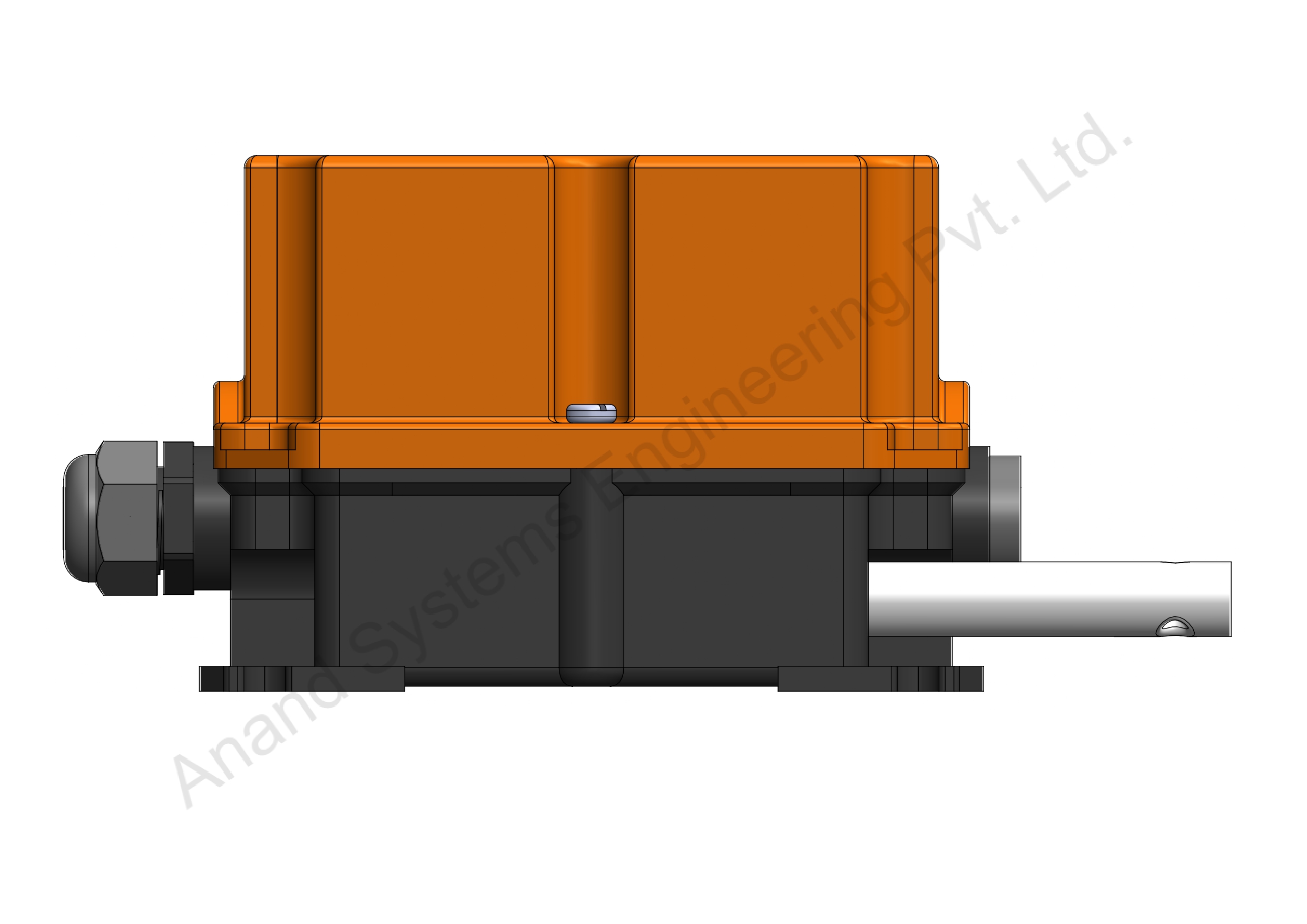

FG50P2: Worm Drive Rotary Geared Limit Switch
Introduction: Model FG50P2

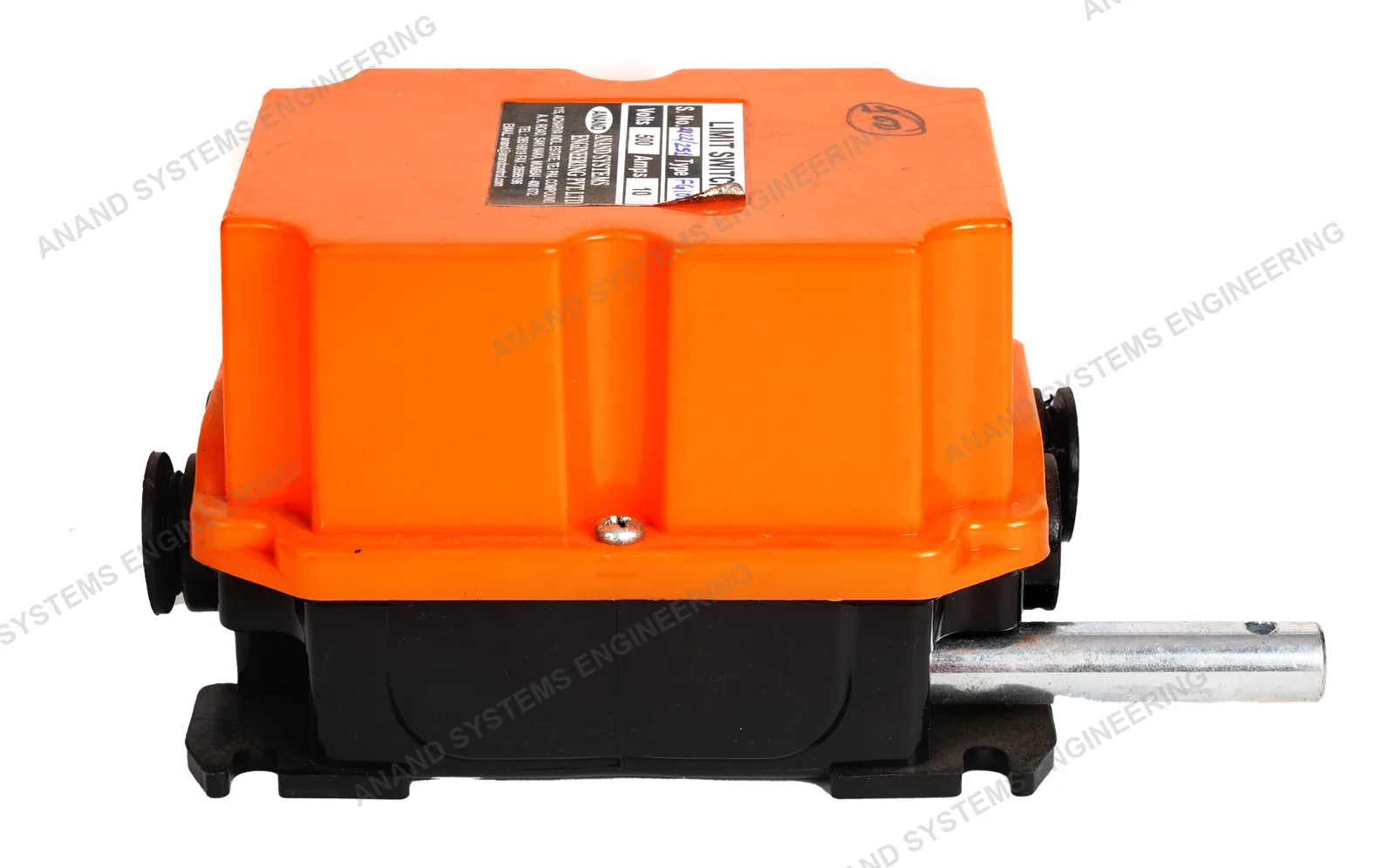

The Anand Control Model FG50P2 is a worm drive rotary geared limit switch engineered for safety and precision in industrial applications. It is directly attached to the motor's gearbox via a shaft and coupling. This design ensures accurate tracking of machinery movement. The flexible coupling is crucial as it protects the limit switch's shaft from stress caused by misalignment, enhancing durability and reliability.
Working Principle of FG50P2 Limit Switch
The FG50P2 operates on a robust worm drive mechanism, which generates sufficient torque to rotate the internal gears. The main shaft's rotation is transferred to a helical gear. Based on the selected gear ratio, cams attached to the gears also rotate. A standard FG50P2 includes at least two cams for setting the upper and lower travel limits of machinery like a hoist.
Each cam can be independently adjusted with fine-tuning screws to precisely define the stopping points. When the machinery reaches a preset limit, the cam activates an electrical contact (available as Normally Open or Normally Closed) which cuts off the motor's power. This action immediately stops the machine, allowing it to move only in the reverse direction, thus preventing accidents and equipment damage.
Key Applications of FG50P2 Limit Switch
FG50P2 limit switches are essential wherever you need to monitor and control the number of rotations or angle of a shaft, stopping the equipment precisely when it reaches its operational limits. Common applications include:
-
EOT Cranes: For controlling hoist and travel motion.
-
Electric Hoists: To prevent over-winding and hook damage.
-
Gantry & Goliath Cranes: For managing long travel limits.
-
Tower Cranes & Mobile Cranes: Ensuring safe operational boundaries.

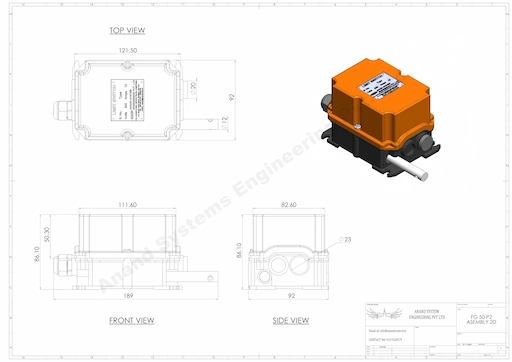

FG50P2 Technical Specifications
| Feature | Specification |
|---|---|
| Body Material | Black Nylon / Nylon |
| Cover Material | High-Impact, Shock-Resistant Thermoplastic |
| Protection Degree | IP-55 (as per IS-13947 Part-1, 1993): Dust-tight and protected against water jets. |
| Available Gear Ratios | 1:12.5, 1:25, 1:50, 1:100 & 1:400 |
| Drive Mechanism | Worm Screw |

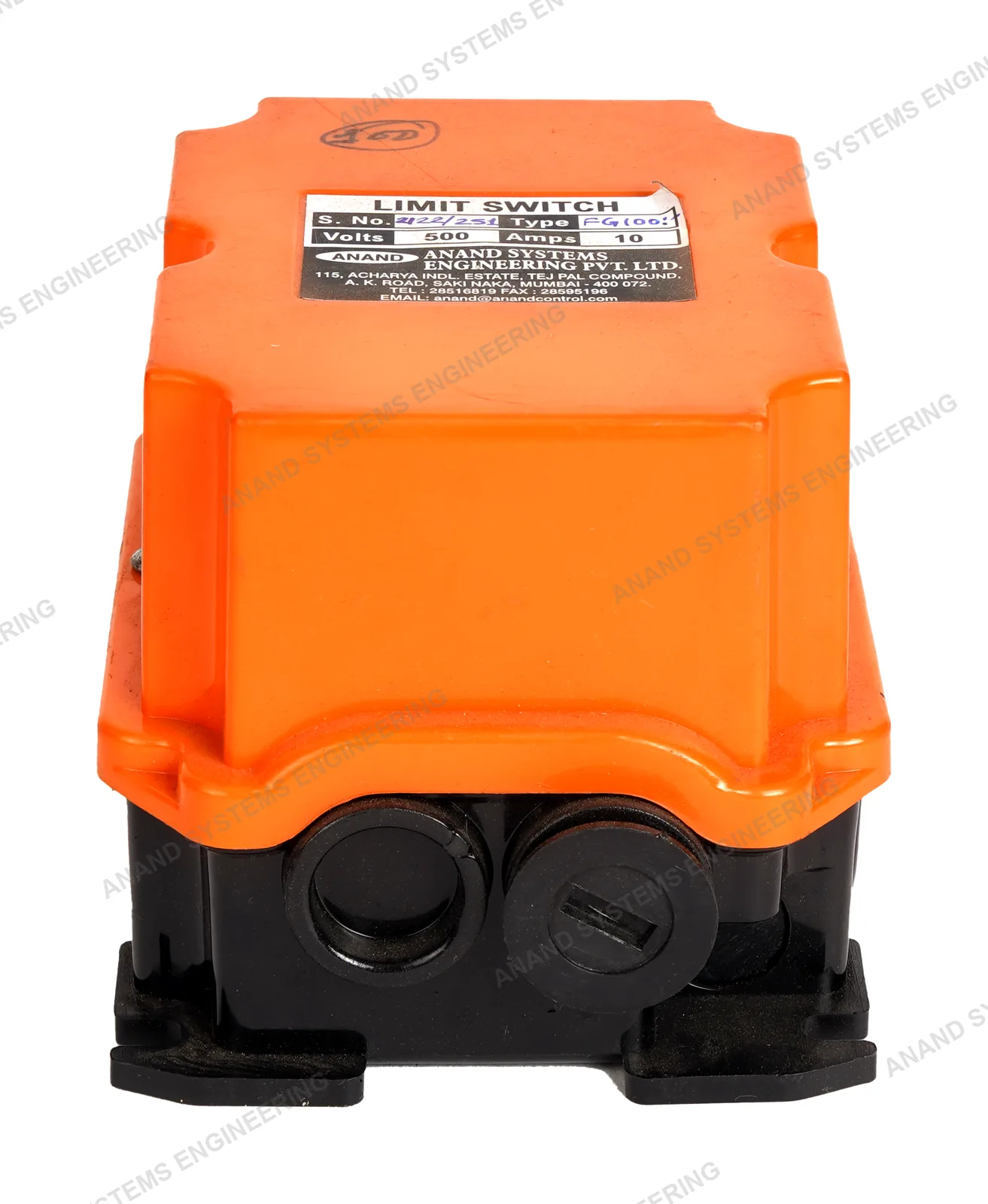

| Cable Entries | 2 x 3/4" Conduit |
| Rated Insulation Voltage | 500 VAC |
| Thermal Test Current | 10 Amps |
| Maximum Speed | 1200 RPM |
| Wire Connection | Screw Terminal |
Warranty & Support
The FG50P2 comes with a 1-year manufacturer warranty from the date of dispatch, ensuring reliability and peace of mind.
