Lever Limit Switch 2C 40A IP41 for EOT Cranes
Reliable, durable, and IP41-rated limit switch designed for crane safety and motion control.
Introduction

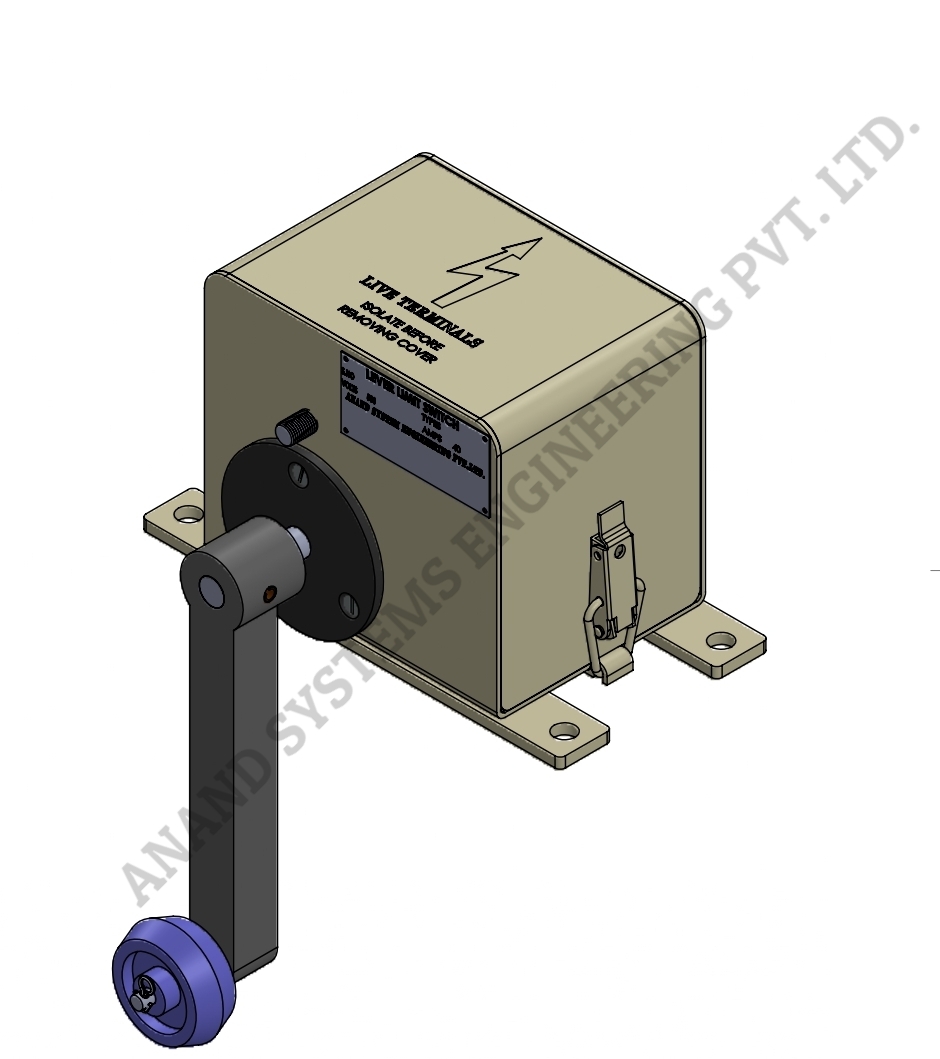

Model Name: LS/2/SH/2/41-40A
The Lever Limit Switch is an electromechanical device used to detect the position or movement of EOT cranes and hoists, ensuring safety and accuracy.
Working Principle
The lever limit switch operates via a rotating shaft and lever mechanism. When the crane motion reaches a defined limit, the lever activates the cam inside the switch, interrupting the circuit and stopping movement to prevent over-travel or mechanical damage.
Applications
- EOT Cranes
- Electric Hoists
- Gantry & Goliath Cranes
- Material Handling Systems
- Wagon Shunting Devices
Technical Specifications
| Body | Cast Iron / Aluminum Casing |
|---|---|
| Protection Degree | IP41 / IP54 - Dust & Water Jet Protection |
| Cable Entries | 2 / 3/4 Conduits |
| No. of Contacts | 2 / 3 / 4 |
| Contacts | Double break silver cadmium |
| Rated Voltage Insulation | 500 VAC |
| Thermal Test Current | 10 Amps |
| Wire Connection | Screw Terminal |
| Operations | Up to 720/hour |
The Lever Limit Switch We Manufacture
Photographs of the LS/2/SH/2/41-40A lever limit switch built at our works.
