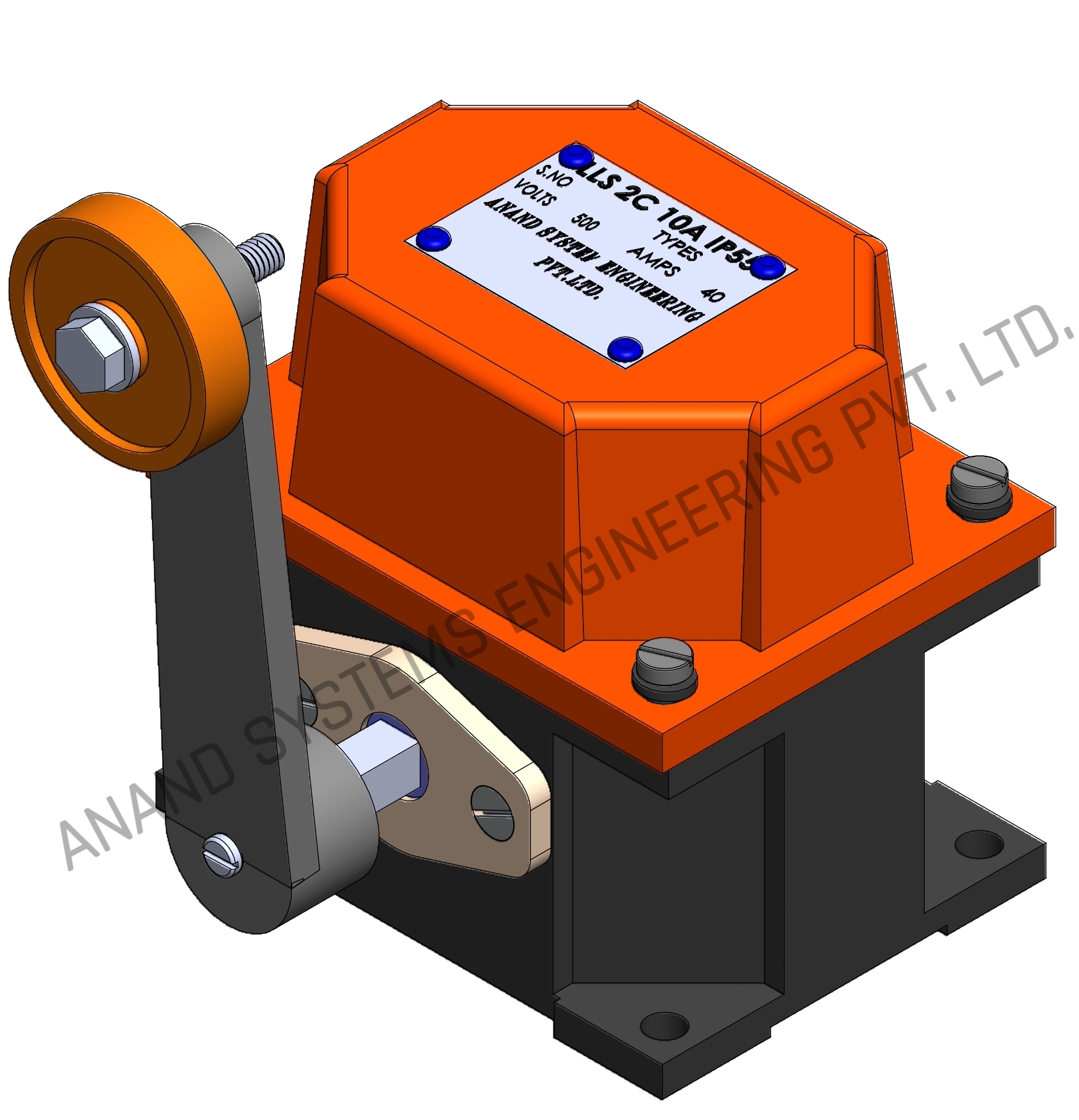

Lever Limit Switch 2C 10A IP55 for EOT Cranes
High-quality, IP55-rated lever limit switch designed for EOT crane and hoist motion control applications.
Introduction

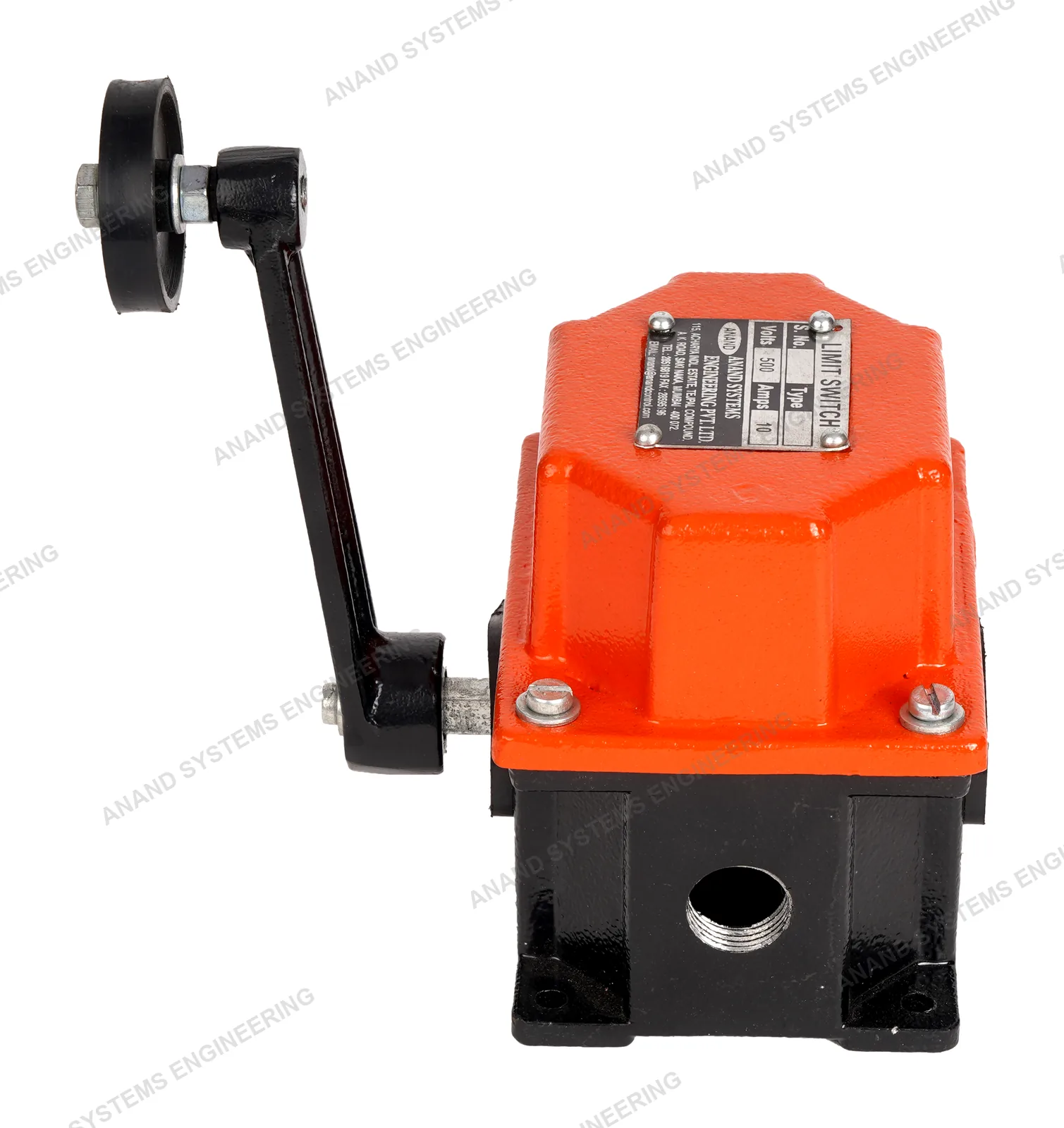

Model Name: LS/2/SH/2/55
The Lever Limit Switch is used to detect crane travel limits and stop motion to prevent over-travel, ensuring safe operations.
Working of Lever Limit Switch

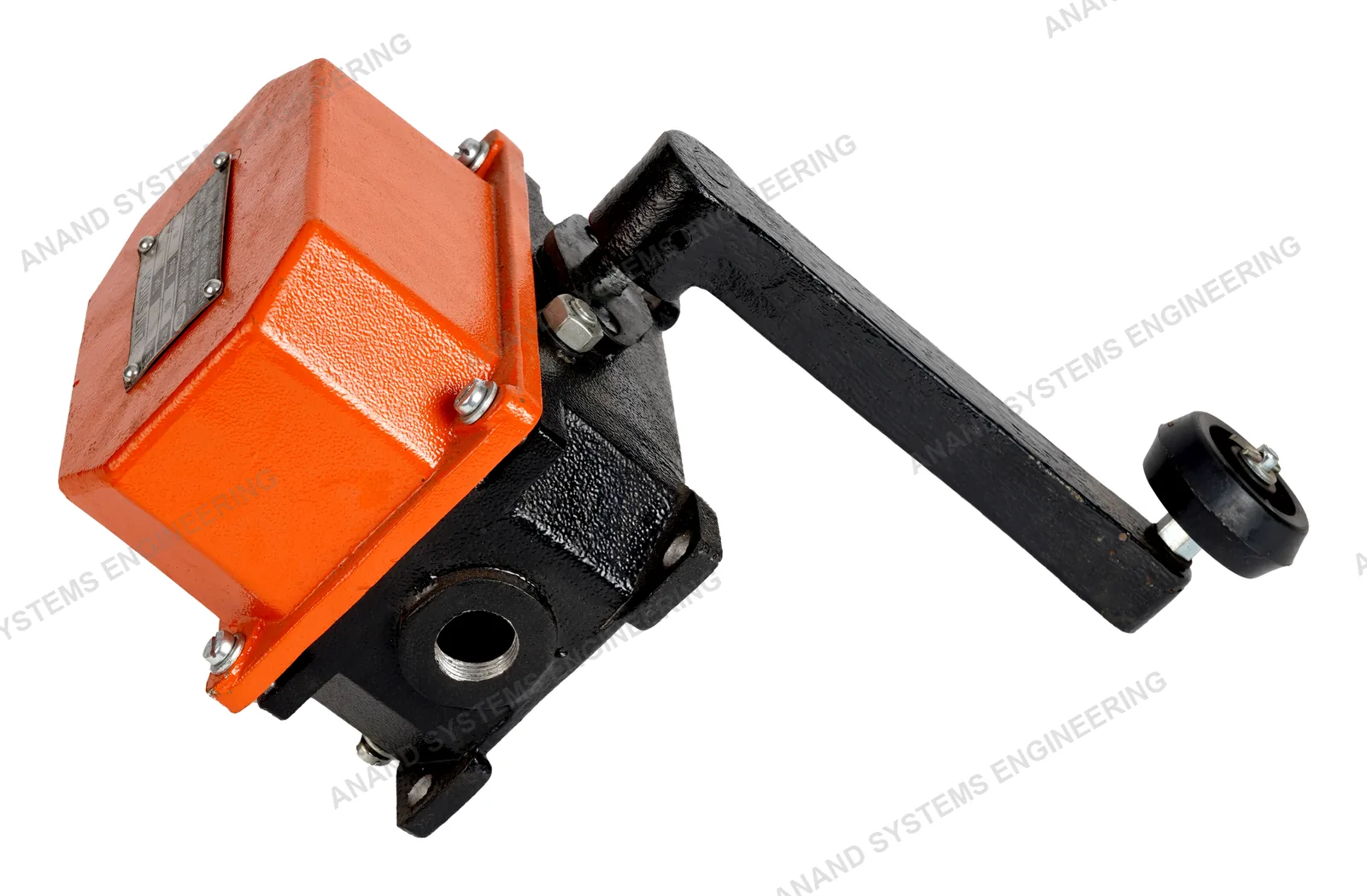

The lever limit switch functions via a rotating shaft connected to a lever arm. When the crane movement reaches the defined limit, the lever rotates the camshaft, opening or closing electrical contacts to stop movement. This prevents mechanical damage and ensures safe crane operations.
Applications
- EOT Cranes
- Electric Hoists
- Gantry & Goliath Cranes
- Material Handling Systems
- Wagon Shunting Devices
Technical Specifications
| Body | Cast Iron / Cast Aluminum main casing with cover |
|---|---|
| Protection Degree | IP55 – Dust & Water Jet Protection |

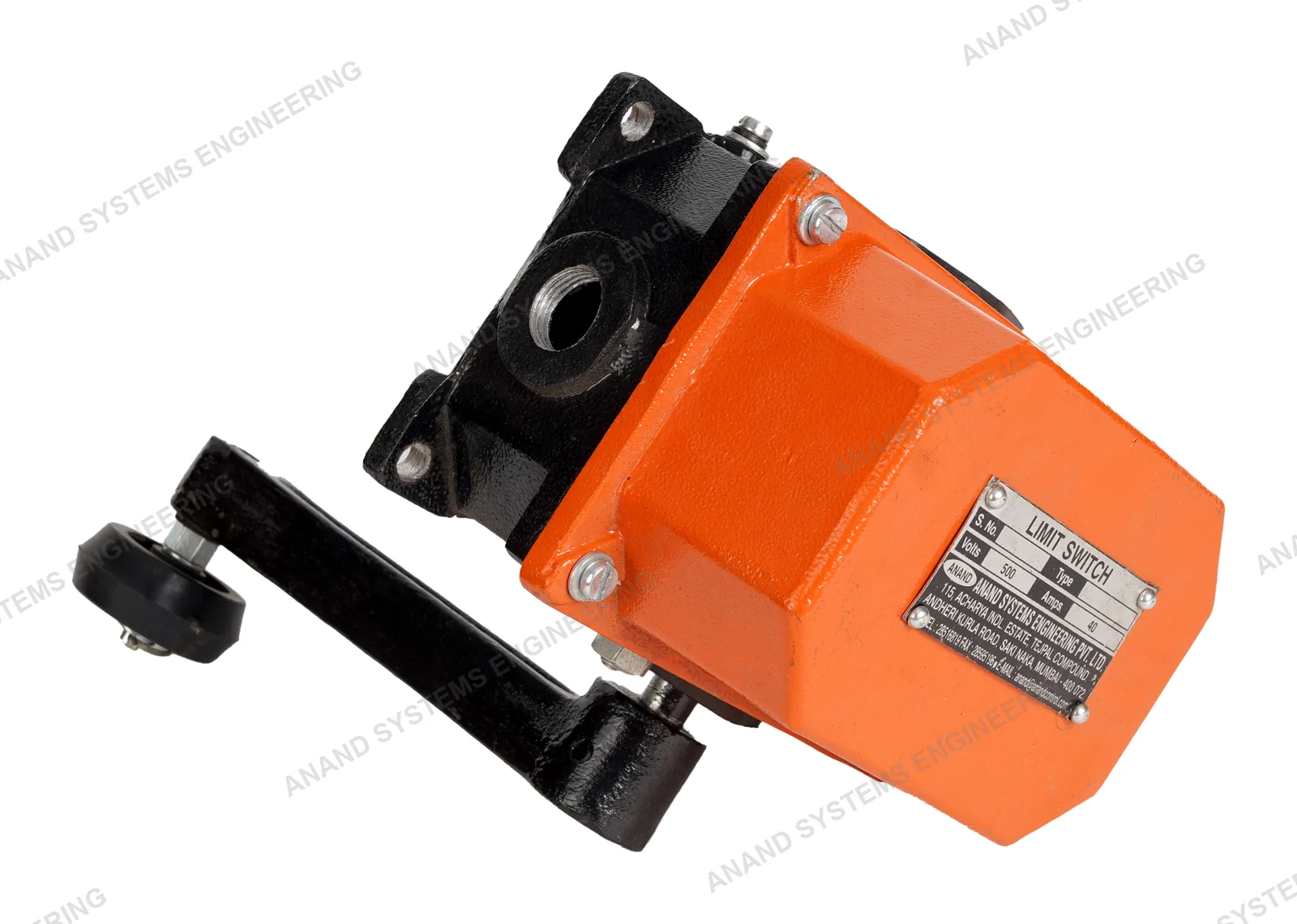

| Cable Entries | 2 × 3/4” Conduits |
| No. of Contacts | 2 / 3 / 4 |
| Contacts | Double break silver cadmium |
| Rated Voltage Insulation | 500 VAC |
| Thermal Test Current | 10 Amps |
| Wire Connection | Screw Terminal |
| Operations | Up to 720/hour |
Warranty & Support
All Lever Limit Switch 2C 10A IP55 units come with 1-year warranty from the date of dispatch.
For assistance, contact us at 91376-20579 or info@anandcontrol.in.
Frequently Asked Questions
Q1: What is the function of a lever limit switch in EOT cranes?
A: It prevents the crane or hoist from over-traveling by cutting power when motion reaches a preset limit.
Q2: Is Lever Limit Switch 2C 10A IP55 waterproof?
A: Yes, it has IP55 protection – resistant to dust and low-pressure water jets.
Q3: Where can I buy genuine Anand Lever Limit Switches?
A: Visit www.anandcontrol.in or call +91 91376 20579.
