EOT Crane Anti-Sway Control

Why Does a Crane Load Swing?

A suspended load behaves approximately like a pendulum. Crane motion can introduce energy into that pendulum and create oscillation. Several conditions can contribute to load swing.

• Acceleration

  Rapid crane acceleration can cause the suspended load to lag behind the movement of the trolley or bridge.

• Deceleration

  When the crane slows down, the load can continue moving and swing in the opposite direction.

• Direction Changes

  Sudden changes in direction can introduce additional oscillation.

• External Disturbances

  Wind, off-centre lifting, and other site conditions can also influence the load's movement.

The result is the same: the crane moves, but the load takes time to settle.

The Physics Behind Load Sway

The suspended load can be simplified as a pendulum.

The important engineering principle is that the characteristics of that pendulum change with the suspension geometry. In practical crane applications, factors such as lifting height and the arrangement of the suspended load can therefore influence crane behaviour. This is one of the reasons anti-sway control needs to account for the actual crane application rather than simply applying a generic acceleration ramp.

The simple idea is that crane motion produces a pendulum response, which produces load swing. Anti-sway reverses the thinking: understand the load behaviour, control the crane motion, and reduce the swing.

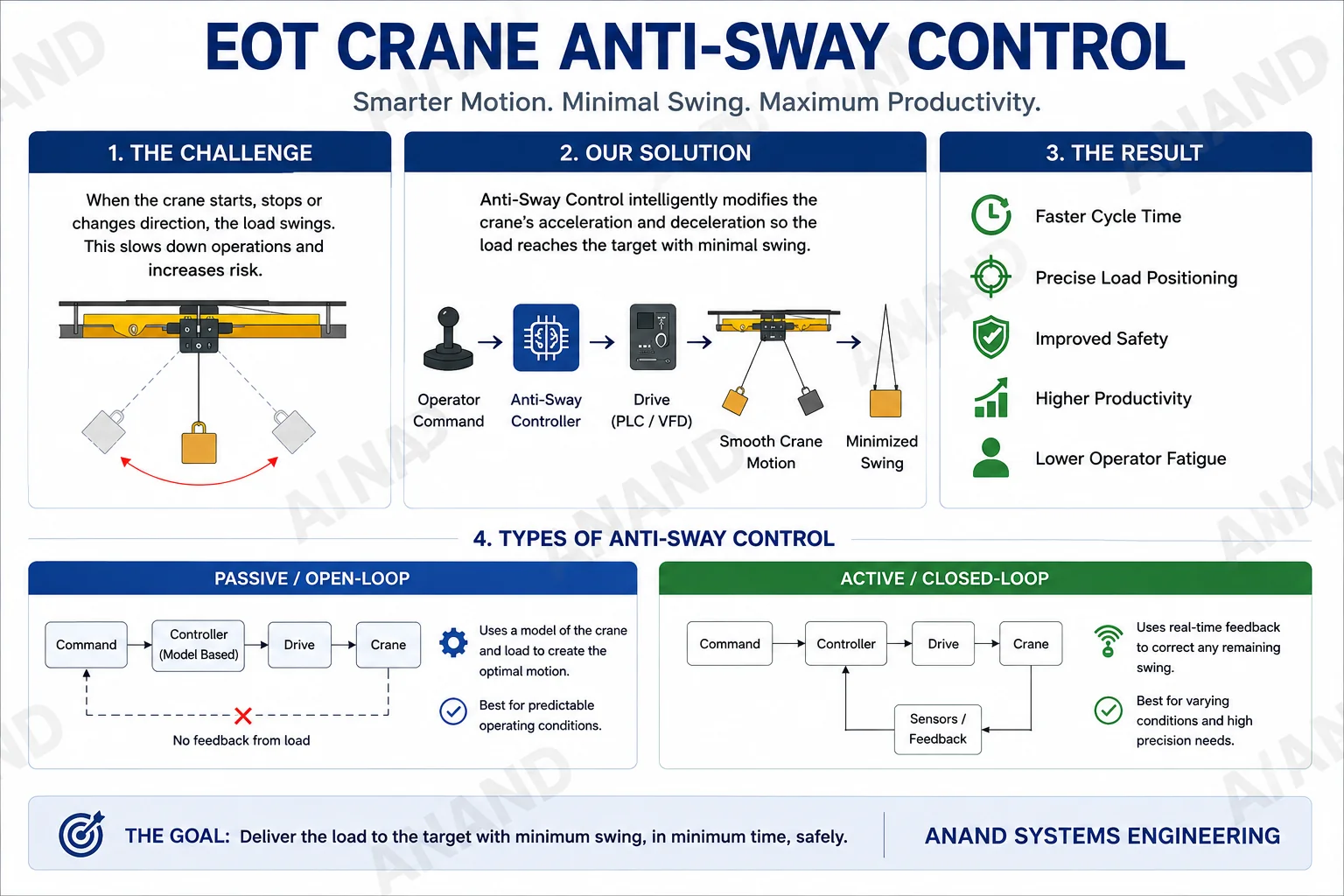

How Does Anti-Sway Control Work?

The operator still controls the crane normally. The difference is that the anti-sway system processes the operator's command and creates an optimised crane motion profile before the command reaches the drive.

• Operator command. The operator commands the required crane movement.
• Anti-sway processing. The control system determines an appropriate motion response.
• Crane drive. The optimised command is sent to the crane's motion-control system.
• Controlled crane motion. The bridge or trolley moves with a controlled acceleration and deceleration profile.
• Reduced load swing. The suspended load reaches the required position with less unnecessary oscillation.

The exact control strategy depends on the crane configuration, drive system, operating conditions, and required performance.

Passive / Open-Loop Anti-Sway

A passive anti-sway system, commonly associated with an open-loop or feedforward approach, uses a predefined or model-based control strategy to shape crane motion. The system predicts the desired motion rather than continuously measuring the actual load swing.

• Relatively simple control architecture
• Lower sensing requirements
• Suitable for more predictable operating conditions
• Can provide effective swing reduction when correctly configured

Because the system does not directly measure actual load behaviour, its ability to compensate for unexpected disturbances is limited. External disturbances, or differences between assumed and actual crane conditions, may result in residual swing.

Active / Closed-Loop Anti-Sway

An active anti-sway system uses feedback. Instead of relying only on a predefined motion strategy, the system uses measured information from the crane or load to determine whether additional correction is required.

• Uses feedback information
• Can respond to changing operating conditions
• Can compensate for measured disturbances
• Can provide greater control capability for demanding applications

Closed-loop systems generally require additional sensing, electronics, software, tuning, and integration. That can increase system complexity compared with a purely model-based approach.

Passive vs Active Anti-Sway

Can Both Be Used Together?

Yes. Open-loop/feedforward control and closed-loop/feedback control do not have to be treated as completely separate solutions. A more advanced system can combine predictive control with feedback correction: predict the motion, measure the response, and correct when necessary.

Benefits of Anti-Sway Control

• Faster handling. Less time may be required for the load to settle, helping improve crane handling cycles.
• Better positioning. Reduced residual swing can make it easier to place loads accurately.
• More controlled motion. The crane can respond with a more controlled acceleration and deceleration profile.
• Improved operator experience. The operator can command the desired movement while the control system manages the motion profile.
• Improved productivity. Less unnecessary load movement can support more efficient material handling.
• Supports automation. Reduced swing is particularly valuable when cranes are being integrated into semi-automatic or automatic handling systems.

Where Is Anti-Sway Useful?

Anti-sway can be particularly useful in applications where load positioning, cycle time, and controlled movement are important.

• EOT cranes
• Industrial overhead cranes
• Bridge cranes
• Trolley travel systems
• Semi-automatic crane applications
• Automated material-handling systems

The correct system design depends on the crane, load, operating environment, and performance requirements.

Anti-Sway Is Not a Replacement for Safe Crane Operation

Anti-sway is a motion-control technology. It should not be treated as a replacement for proper crane design, safety systems, safe operating procedures, inspection, or operator training. Its purpose is to improve control of the crane and reduce unwanted load movement.

System performance depends on factors such as crane configuration, drive characteristics, mechanical condition, control tuning, operating environment, and application-specific requirements.

Anti-Sway Control at a Glance

• Operator command
• Anti-sway controller
• Optimised crane motion
• Reduced load swing
• Faster and more precise load handling

Conclusion

EOT crane load swing is a dynamic problem created by the interaction between crane motion and a suspended load. Anti-sway control addresses this problem by intelligently controlling crane motion rather than simply applying conventional acceleration and deceleration.

Passive / open-loop systems use a model-based approach to shape crane motion. Active / closed-loop systems use feedback to respond to actual system behaviour. For some applications, a combination of both approaches can provide the right balance between predictive control and real-world correction.

The engineering principle is simple: control the crane motion so the load moves with it. The exact implementation, algorithms, sensing architecture, and tuning strategy depend on the application and are best developed as part of the crane control-system design.
