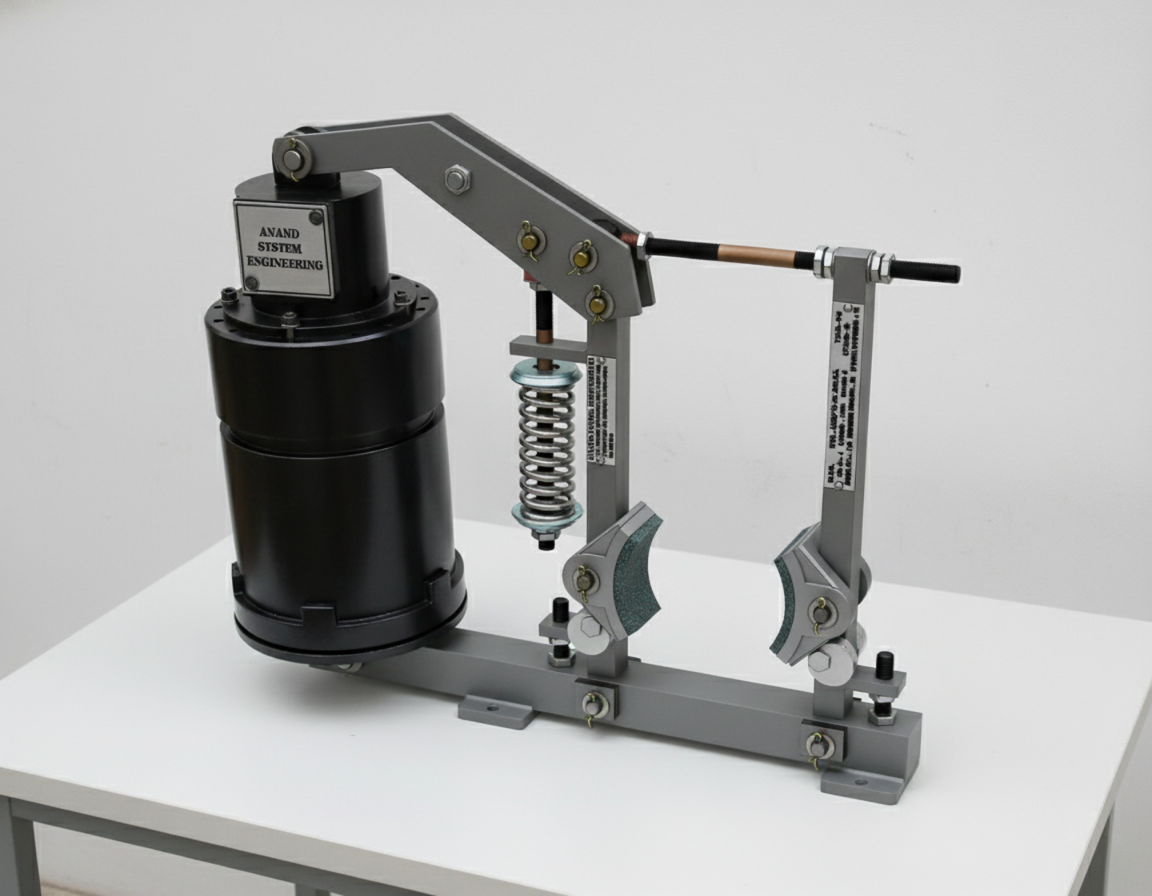

MDT 100-18 Mill Duty Thruster Brake (For 100mm Drum)
A fail-safe and robust electro-hydraulic thruster brake engineered by Anand Control for heavy-duty mill applications and EOT cranes.
- Heavy-Duty Steel Frame: Features an industry-leading rigid steel frame for maximum strength and durability, ensuring long-term performance.
- High-Frequency Operation: Designed for demanding environments, capable of up to 720 operations per hour, making it ideal for continuous use.
- Reliable Thruster: Efficiently paired with the powerful AT-520 (18 Kg) electro-hydraulic thruster for precise and consistent braking.
- Robust Environmental Protection: IP-55 rated enclosure provides excellent protection against dust ingress and low-pressure water jets, suitable for harsh industrial conditions.
- Fail-Safe Design: Ensures reliable braking in case of power failure, enhancing operational safety.
- Easy Maintenance: Designed for straightforward installation and minimal maintenance requirements.
Get a Quote for the MDT 100-18 Thruster Brake
Contact Anand Control today for competitive pricing, prompt delivery, and expert technical support for your crane braking needs.

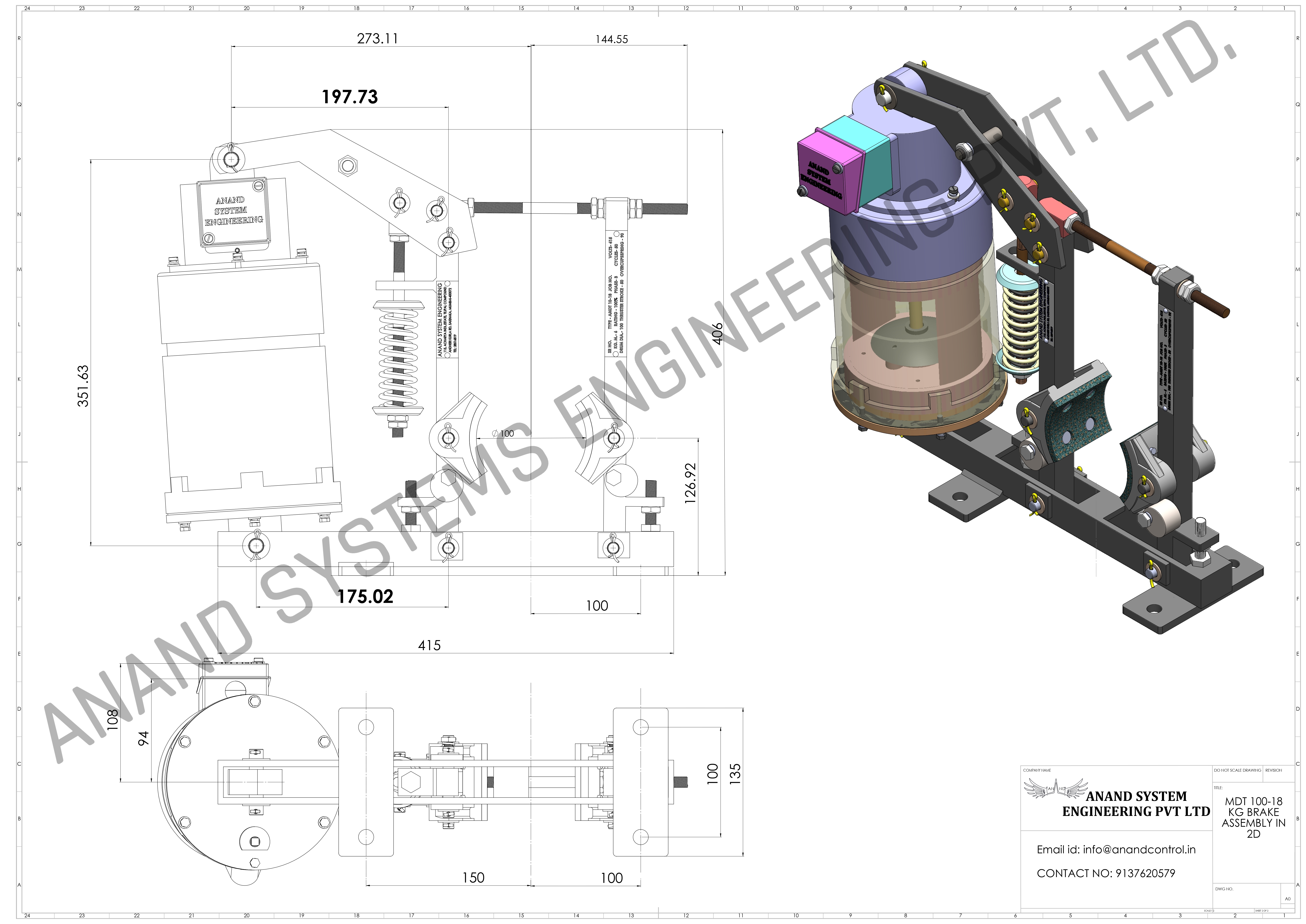

Call for Enquiry Download Product Catalog Download 2D Technical DrawingMDT 100-18 Thruster Brake Technical Specifications & Demonstration Video
| MDT 100-18 Specifications | |
|---|---|
| Model Number | MDT 100-18 |
| Compatible Brake Drum Diameter | 100 mm |
| Integrated Thruster Model | Anand Control AT-520 (18 Kg) |
| Rated Braking Torque | 6 Kg-m |
| Maximum Operations per Hour | Up to 720 cycles |
| Environmental Protection Rating | IP-55 (Dust protected, water jet resistant) |
| Application | EOT Cranes, Hoists, Conveyors, Winches |
| Frame Material | Heavy-duty Steel |
| Warranty | 1 Year Manufacturer Warranty |
Working Principle of Anand Control Electro-Hydraulic Thruster Brakes
The Thruster Brake operates as a critical fail-safe device in heavy industrial applications. Its core function relies on a pre-stressed compression spring that continuously applies braking force to the brake shoes, keeping them engaged with the brake drum. This ensures that the load is held securely when power is absent or cut.
Upon receiving electrical power, the integrated electro-hydraulic thruster activates. This thruster generates hydraulic pressure, which then overcomes the spring force. As the thruster rod extends, it lifts the brake shoes clear of the drum, releasing the brake and allowing the machinery (e.g., EOT crane, hoist) to operate freely. When the power supply to the thruster is interrupted, the hydraulic pressure dissipates, and the robust compression spring instantly re-engages the brake shoes onto the drum. This rapid, automatic application of braking force effectively retards the speed of the machinery and securely holds the load, preventing unintended movement and ensuring operational safety.
