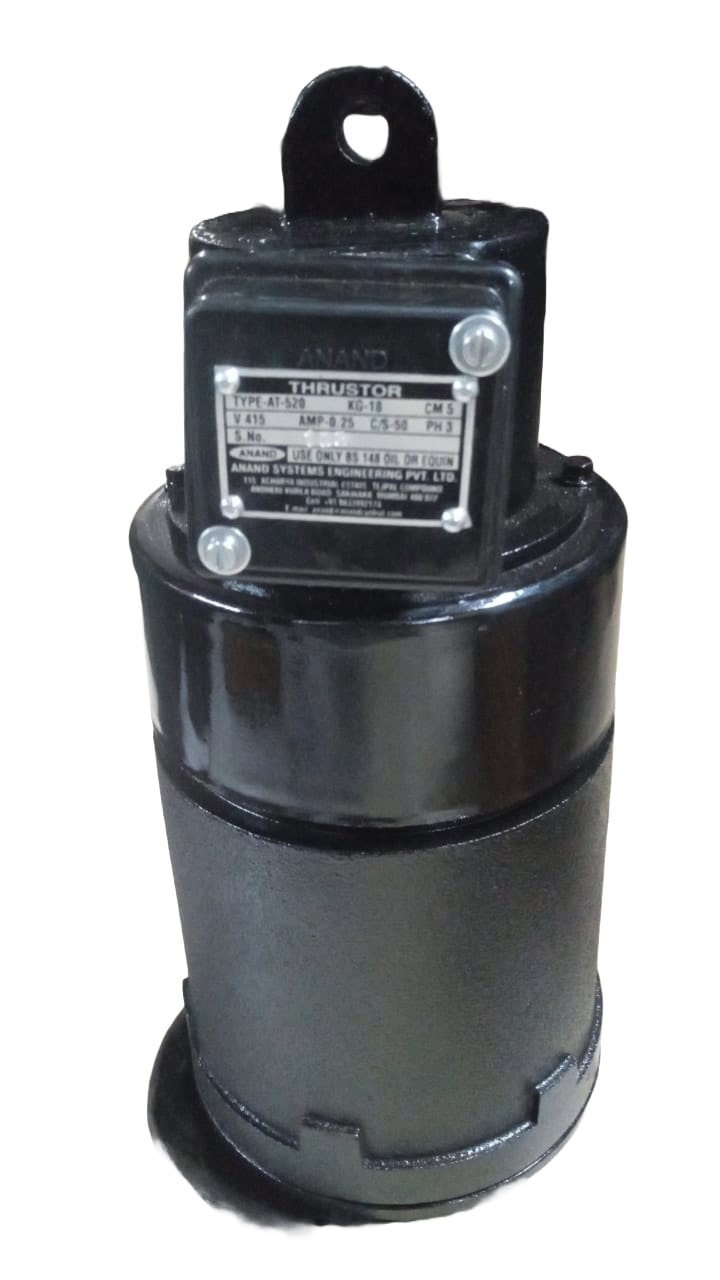

18 Kg Electro Hydraulic Thruster (Model: AT-520)
A robust and reliable electro-hydraulic device for industrial braking systems.
- Fast Response: Up to 2000 cycles per hour for high-frequency operations.
- Long Service Life: Designed for up to 10 million switching cycles.
- Durable Construction: IP-55 rated protection against dust and water.
- High Performance: Class F insulation and efficient power supply on 400/440V.
Get The Best Price
Contact us for enquiries and to receive your official quote.

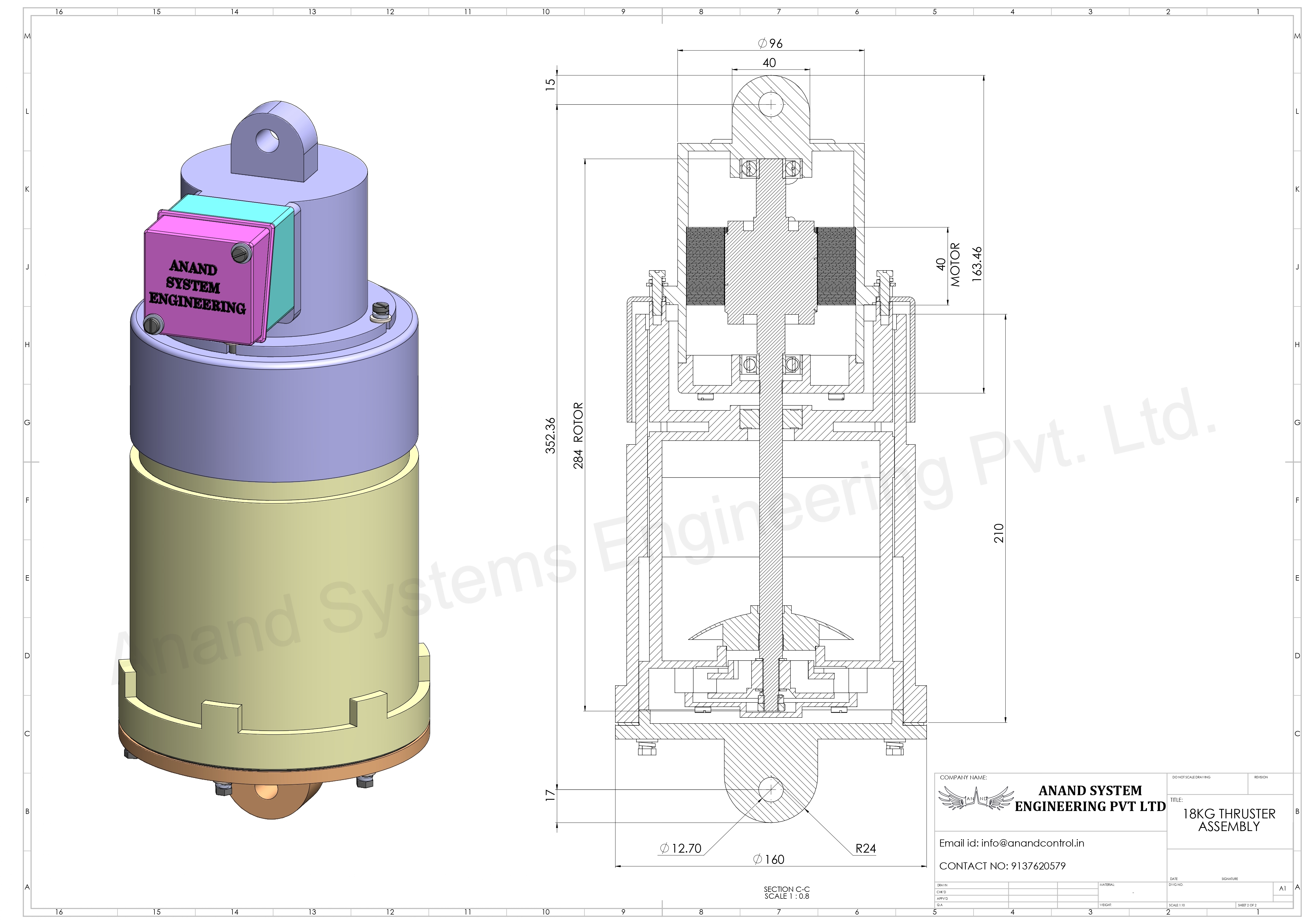

Call for Enquiry Download Catalog Download 2D Drawing
Includes 1-Year Manufacturer Warranty
Technical Details & Video
| Model | AT-520 |
| Thrust Capacity | 18 Kg |
| Power Supply | 400/440 Volts, 3 Phase, 50 C/s, A.C. |
| Insulation Class | Class F |
| Protection | IP-55 Enclosed |
| Response Rate | Up to 2000 cycles per hour |
Working Principle
The Thruster works on a principle of hydraulics. On supply of electric power, a motor-driven centrifugal impeller draws oil from the low-pressure chamber to the high-pressure upper end. The piston mounted on the same shaft moves upwards with full thrust until its movement is stopped. When power is discontinued, the pressure releases. The radial blade design of the impeller enables it to rotate in both clockwise and anticlockwise directions, allowing for any R-Y-B phase sequence in the power supply.
Key Advantages
- Long useable life up to 10 million switchings.
- Digital and analogue sensor options for monitoring function.
- Setting force up to 6300N and setting path up to 160MM.
- Variable mounting positions for installation flexibility.
