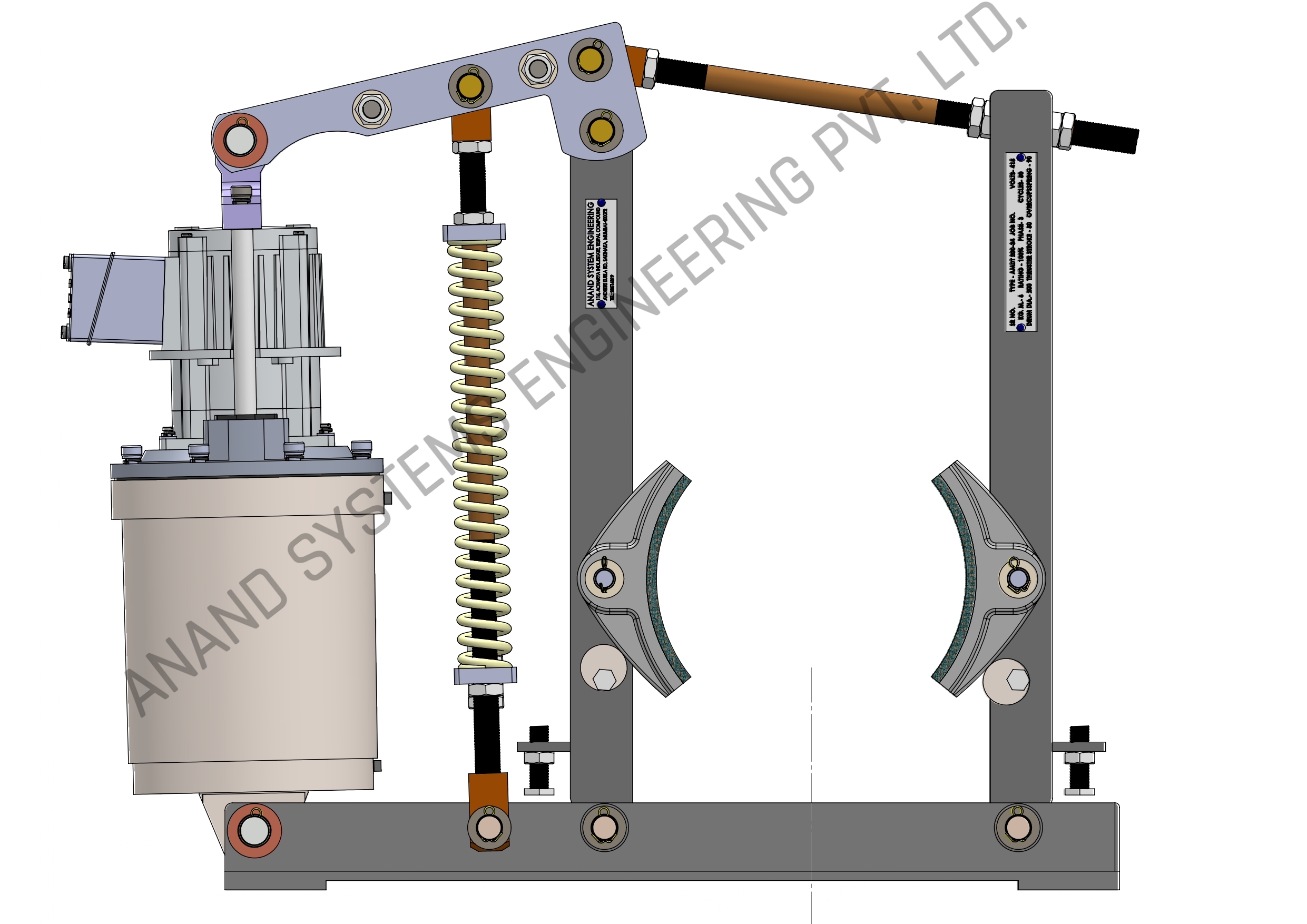

MDT 200-34 Mill Duty Thruster Brake (For 200mm Drum)
A high-torque, heavy-duty thruster brake for 200mm drum systems in demanding environments.
- High Braking Torque: Delivers a powerful 34 Kg-m of torque.
- Heavy-Duty Frame: Robust welded steel frame for maximum strength and long life.
- Powerful Thruster: Equipped with the reliable AT-535 (34 Kg) thruster.
- High-Frequency Operation: Engineered for up to 720 operations per hour.
Request a Quote for this Brake
Contact our team for pricing, delivery schedules, and technical support.

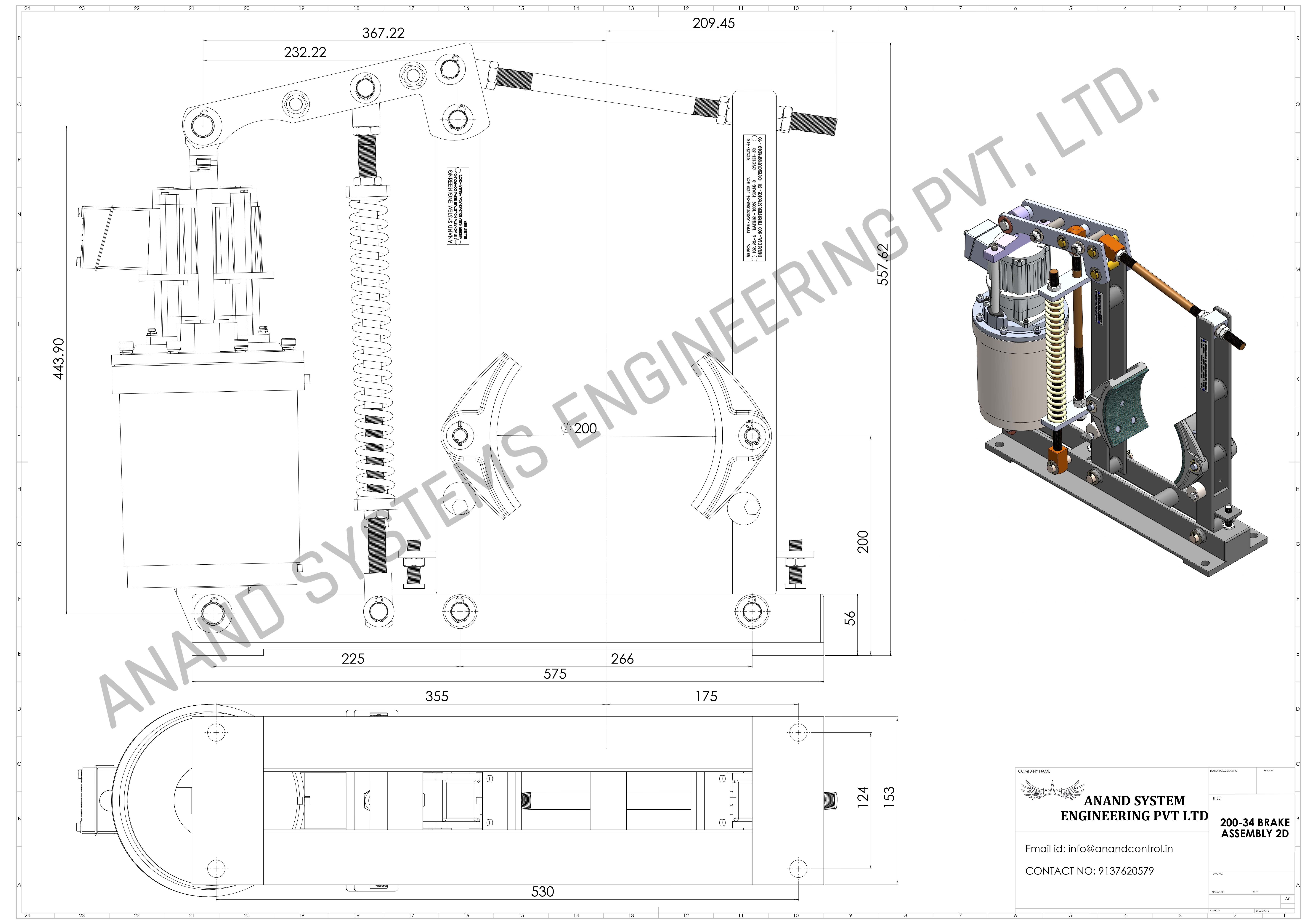

Call for Enquiry Download Catalog Download 2D Drawing
Includes 1-Year Manufacturer Warranty
Technical Details & Video
| Model | MDT 200-34 |
| Brake Drum Diameter | 200 mm |
| Thruster Model Used | AT-535 (34 Kg) |
| Braking Torque | 34 Kg-m |
| Operations per Hour | Up to 720 |
| IP Rating | IP-55 |
Working Principle
The Thruster Brake is a fail-safe device. Braking force is applied to the brake shoes by a pre-stressed compression spring. When power is supplied to the integrated electro-hydraulic thruster, it overcomes the spring force and moves the brake shoes clear of the drum, allowing machinery to operate. When power is cut, the spring instantly applies the brake shoes to the drum, retarding speed and holding the load securely.
