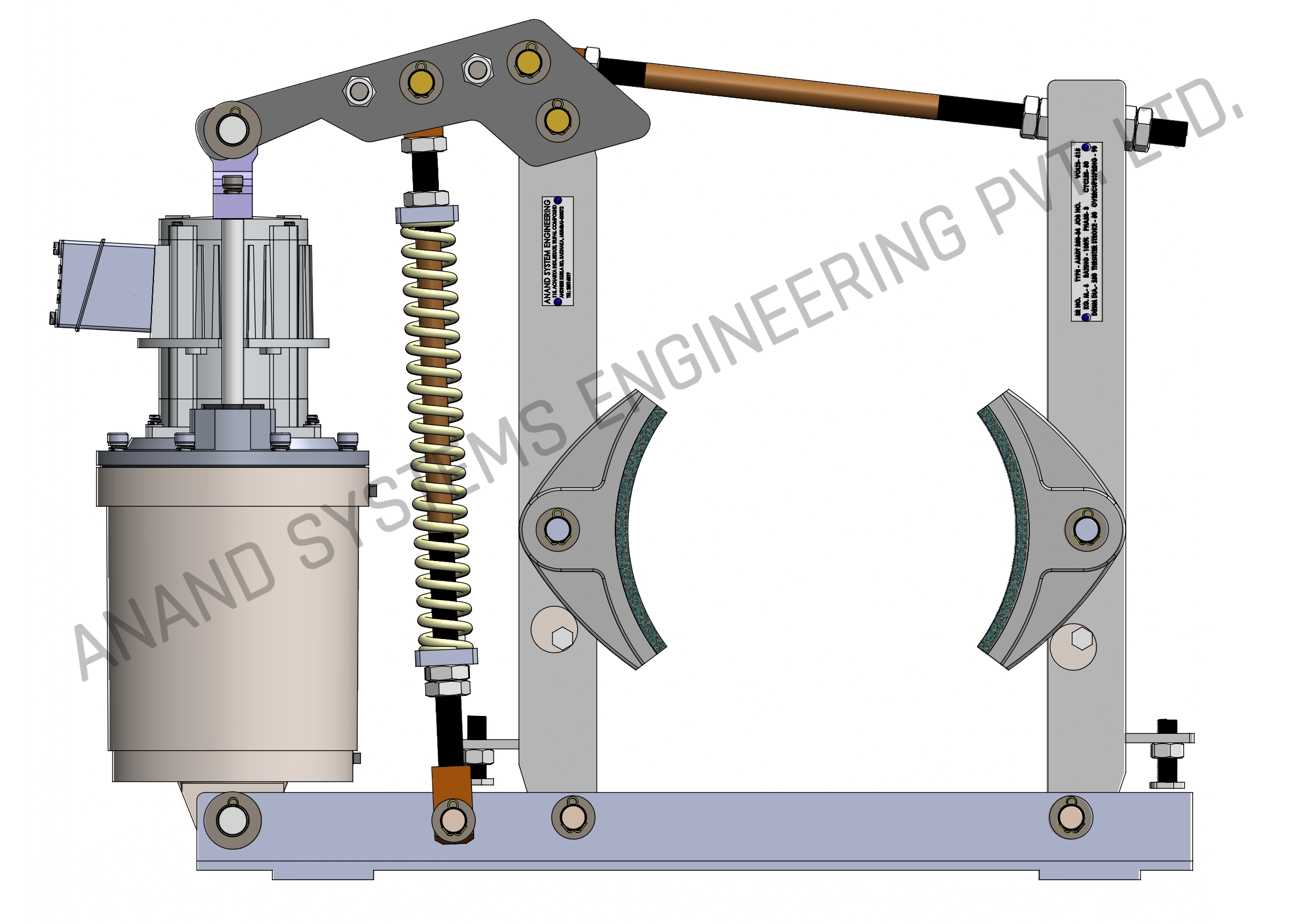

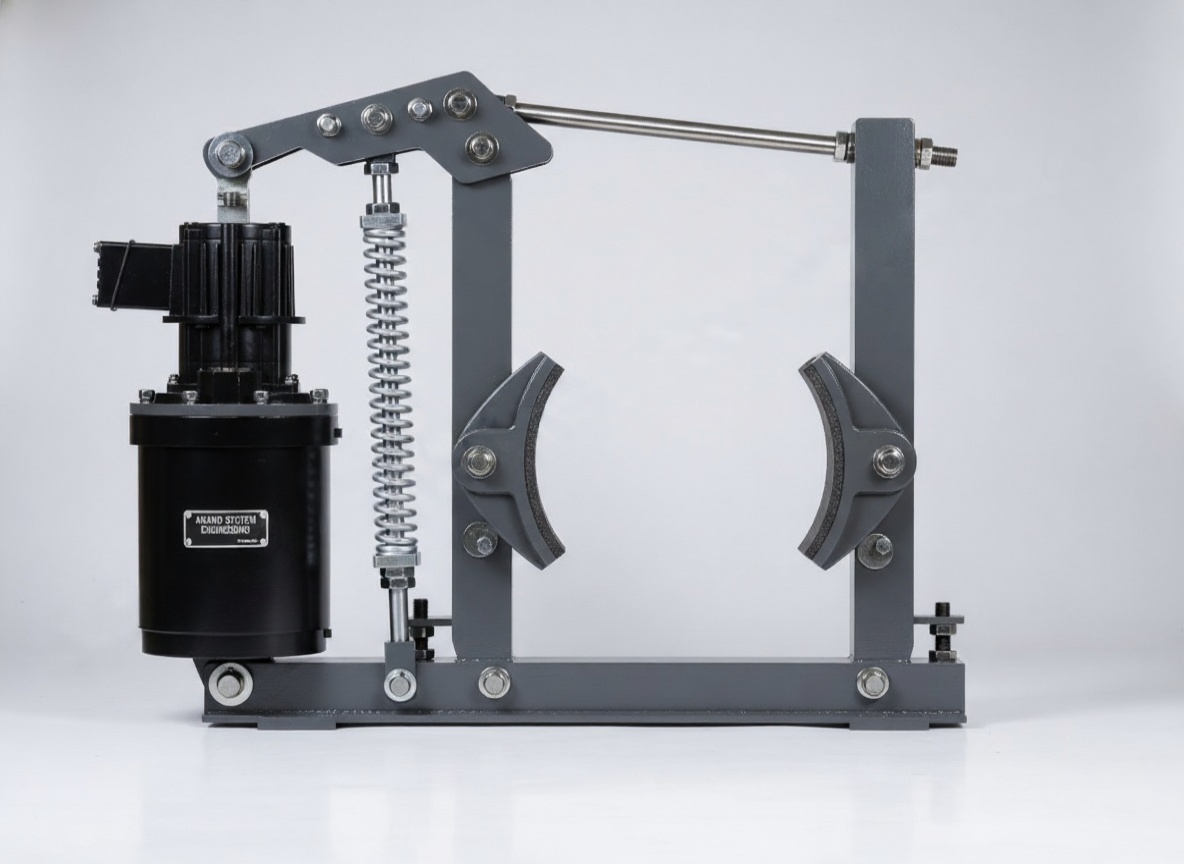

MDT 250-34 Mill Duty Thruster Brake (For 250mm Drum)
A high-torque, heavy-duty thruster brake for 250mm drum systems in demanding industrial applications.
- High Braking Torque: Delivers a strong 42 Kg-m of torque for superior control.
- Heavy-Duty Frame: Robust welded steel frame ensures long operational life.
- Powerful Thruster: Equipped with the reliable AT-535 (34 Kg) thruster.
- High-Frequency Operation: Engineered for up to 720 operations per hour.
Request a Quote for this Brake
Contact our experts for the best pricing and technical information.

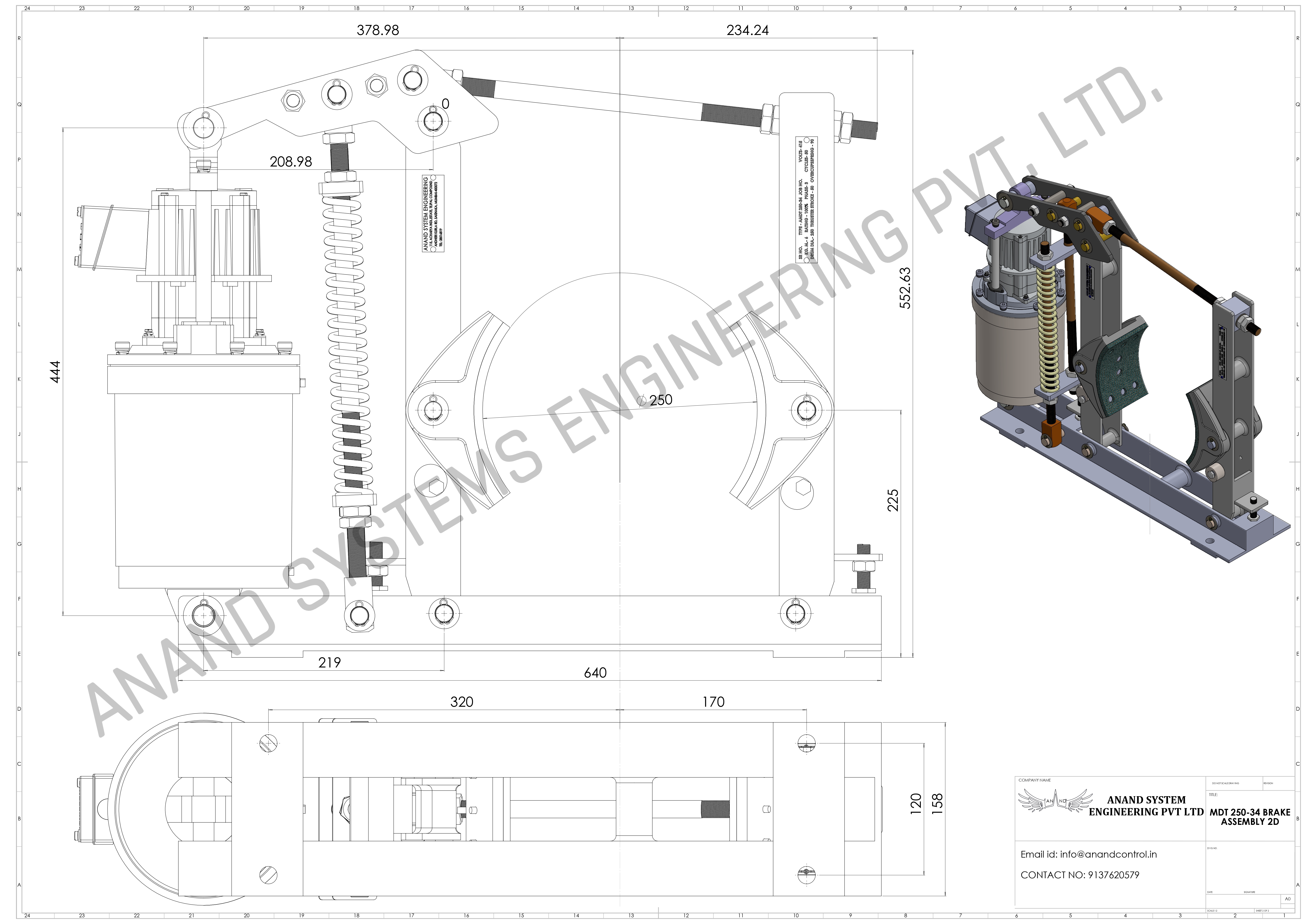

Call for Enquiry Download Catalog Download 2D Drawing
Includes 1-Year Manufacturer Warranty
Technical Details & Video
| Model | MDT 250-34 |
| Brake Drum Diameter | 250 mm |
| Thruster Model Used | AT-535 (34 Kg) |
| Braking Torque | 42 Kg-m |
| Operations per Hour | Up to 720 |
| IP Rating | IP-55 |
Working Principle
The Thruster Brake is a fail-safe device. Braking force is applied to the brake shoes by a pre-stressed compression spring. When power is supplied to the integrated electro-hydraulic thruster, it overcomes the spring force and moves the brake shoes clear of the drum, allowing machinery to operate. When power is cut, the spring instantly applies the brake shoes to the drum, retarding speed and holding the load securely.
