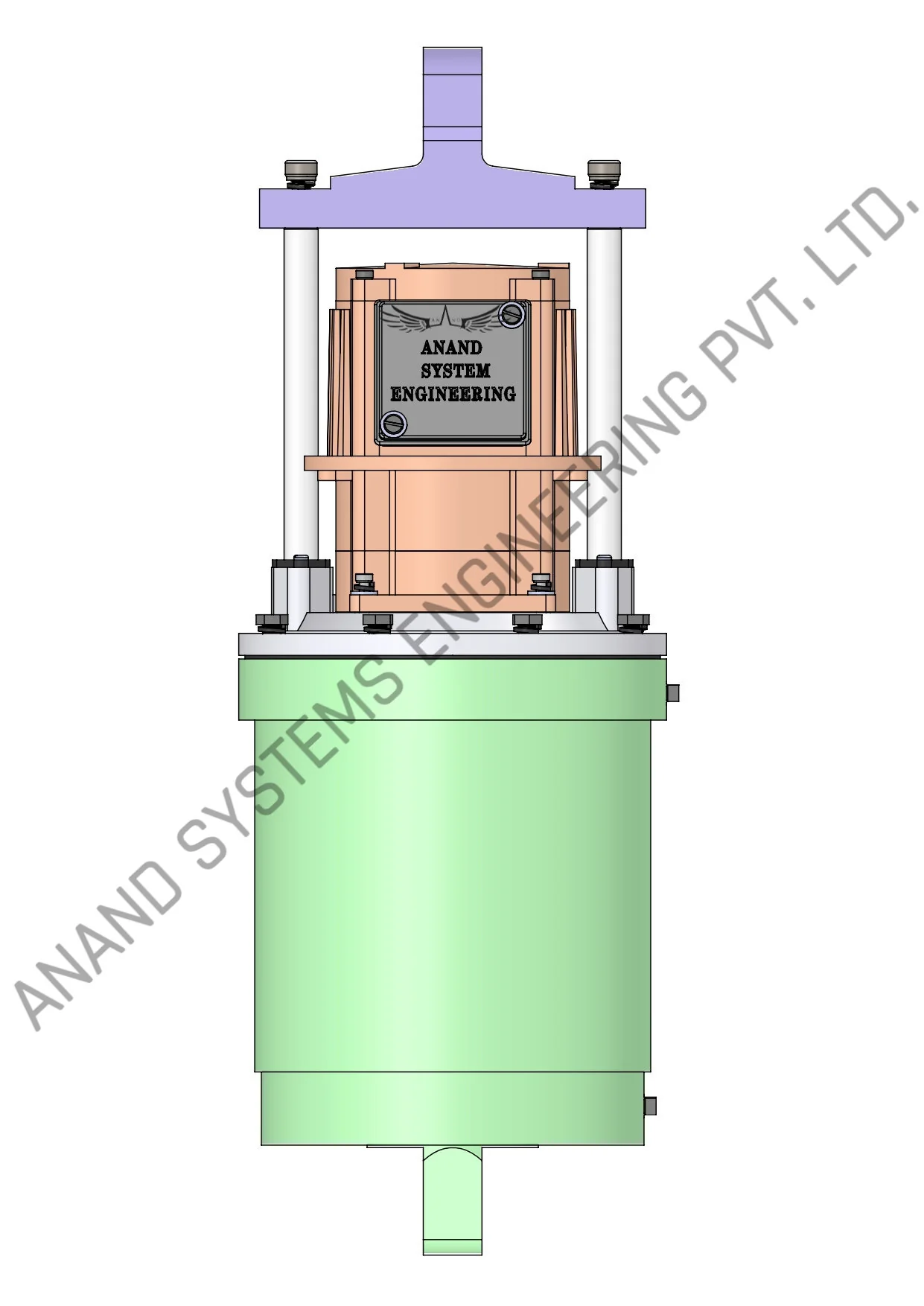

46 Kg Thruster

Introduction

Model Name: AT-546
Thruster is an electro hydraulic device, designed to exert a constant force to any mechanism to be operated.

Electro hydraulic thruster

Working of Thruster 46 kg

The Thruster works on a principle of hydraulics. On supply of electric power, motor driven centrifugal impeller draws the oil from the low pressure end of the chamber to the high pressure upper end. The piston mounted on the same shaft moves to the upper end with full thrust, till its movement is stopped by the stopper shoulder at the end of the stroke . Pressure build up stops when power is discontinued. Radial blade design of the impeller enables it to rotate both in clockwise and anticlockwise direction. Therefore power supply to star connection can be in any R-Y-B phase sequence.

Features of 46 Kg Thruster

* Electro hydraulic thruster of ANAND make are extremely compacting designed and full reliable.
* Fast response – 2000 cycle per hour.
* Long service life with minimum maintenance.
* Thruster brake are suitable for 400/440volts, 3 phase, 50 C/s, A.C. supply.
* Available torque 6kgm to 580kgm
* Easy installation and maintenance.
* Reverse action version available.
* Self adjusting lining wear mechanism.
* Class F insulation.
* Aluminum housing motor and rotor for perfect alignment of rotor shaft.
* Internal working temperature is reduce upto 25%
* High quality stator winding
* Thruster are total enclosed with IP-55 protection

Advantages:

*Long useable life up to 10 million switchings
* Digital and analogue sensor for monitoring proper function
* Setting force up to 6300N
* Setting path up to 160MM
* Variable mounting position

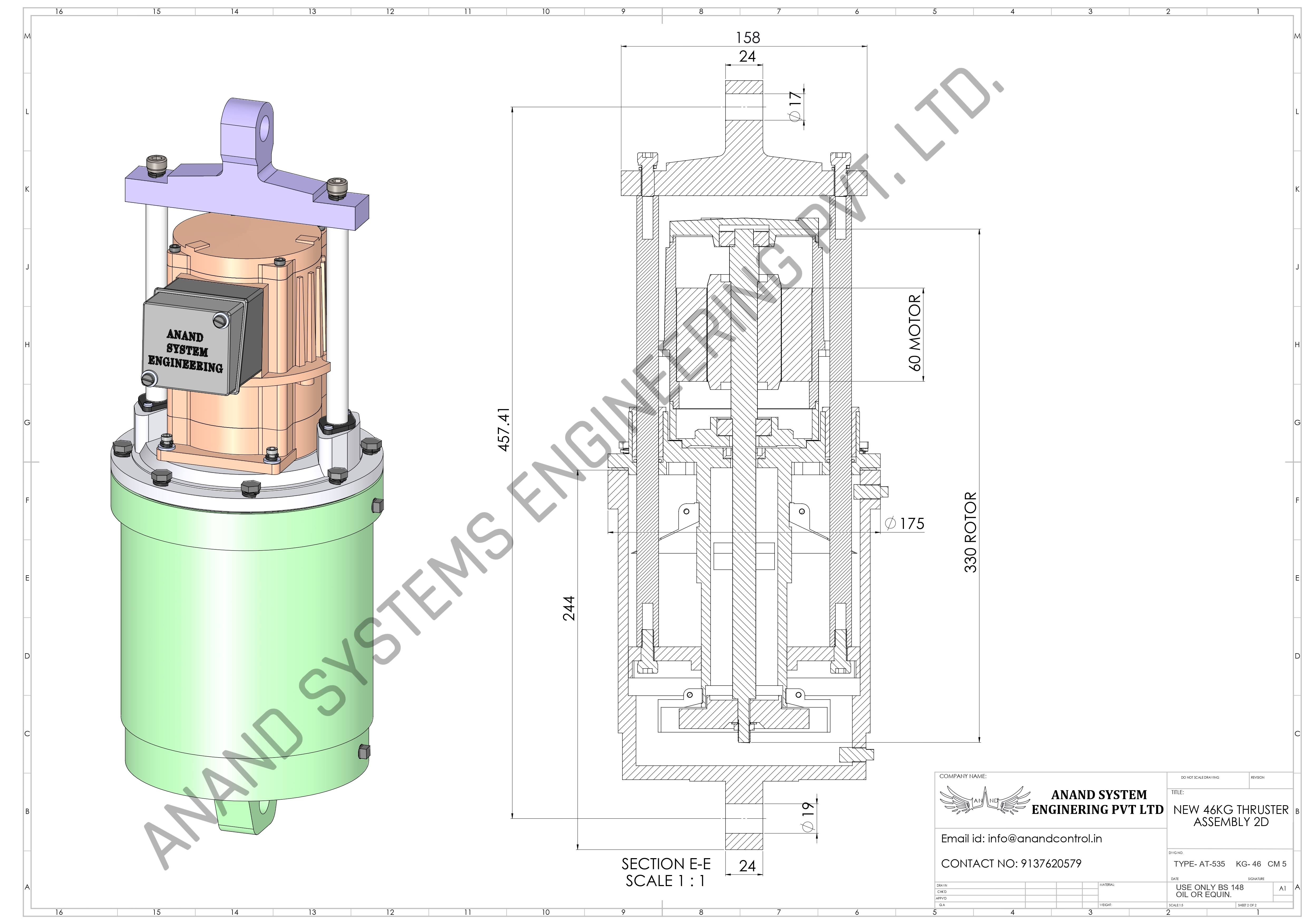

Thruster Brake 2D Image

Warranty:

46 Kg Thruster “1 years warranty” on the date of Dispatch
Contact us:
Get in touch with us at 91376-20579, info@anandcontrol.in or visit our website www.anandcontrol.in
Get Instant Quotation

Packing Details:

46 Kg Thruster comes in a durable and eco-friendly Packing designed to ensure safe delivery.

1 Thruster
1 Tax Invoice, 1 Report
