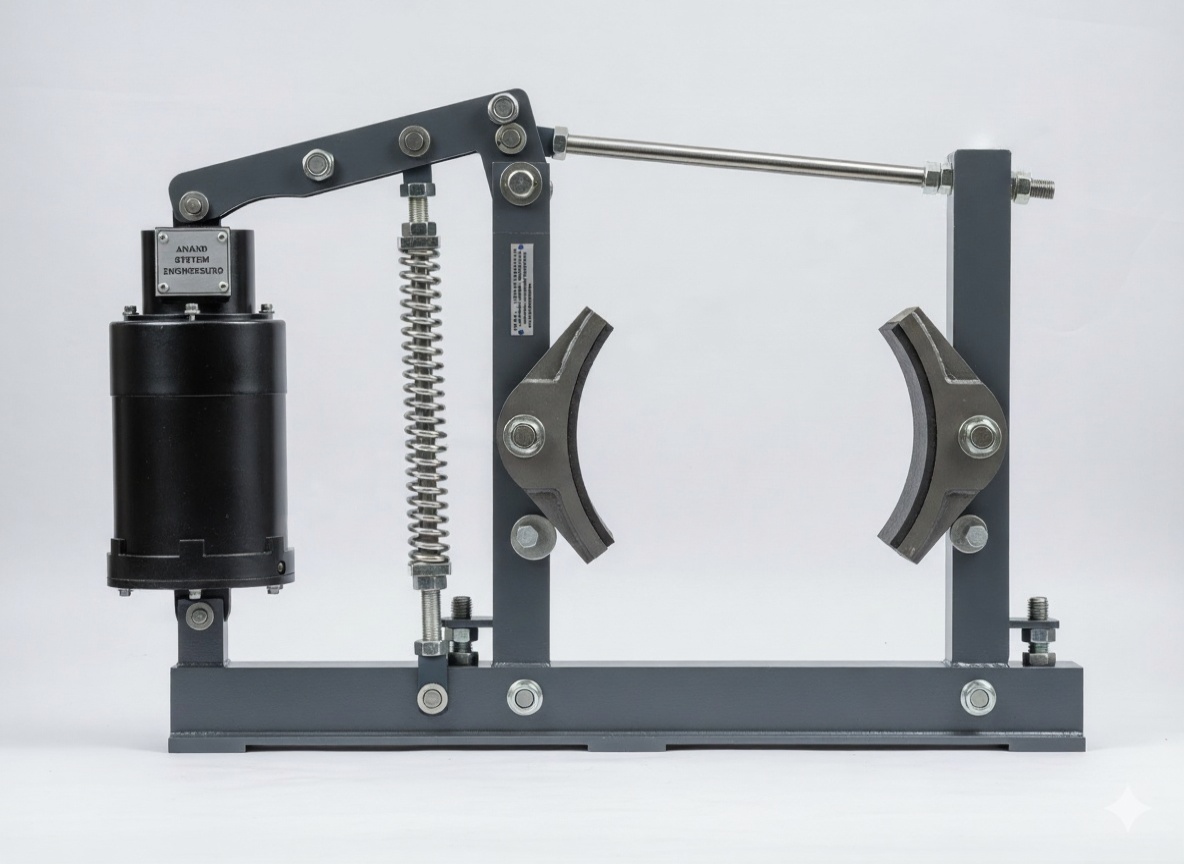

MDT 300-34 Mill Duty Thruster Brake (For 300mm Drum)
A powerful, fail-safe thruster brake for large 300mm drum systems in heavy-duty applications.
- High Braking Torque: Delivers a massive 68 Kg-m of torque for superior stopping power.
- Heavy-Duty Frame: Built with a rigid, welded steel frame to handle extreme industrial stress.
- Powerful Thruster: Equipped with the reliable AT-535 (34 Kg) thruster.
- High-Frequency Operation: Engineered for up to 720 operations per hour.
Request a Quote for this Brake
Contact our team for the best pricing and technical details for this model.

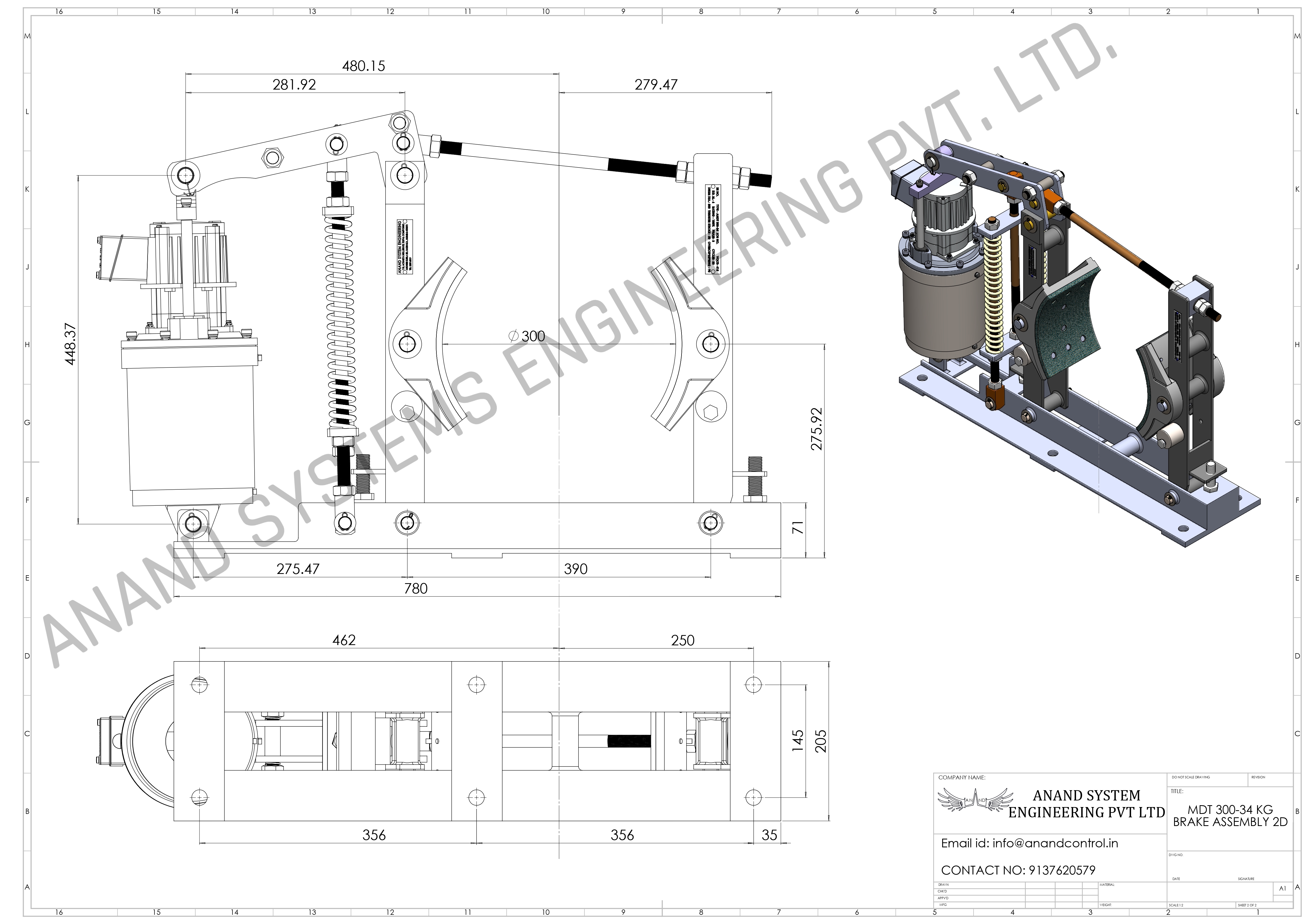

Call for Enquiry Download Catalog Download 2D Drawing
Includes 1-Year Manufacturer Warranty
Technical Details & Video
| Model | MDT 300-34 |
| Brake Drum Diameter | 300 mm |
| Thruster Model Used | AT-535 (34 Kg) |
| Braking Torque | 68 Kg-m |
| Operations per Hour | Up to 720 |
| IP Rating | IP-55 |
Working Principle
The Thruster Brake is a fail-safe device. Braking force is applied to the brake shoes by a pre-stressed compression spring. When power is supplied to the integrated electro-hydraulic thruster, it overcomes the spring force and moves the brake shoes clear of the drum, allowing machinery to operate. When power is cut, the spring instantly applies the brake shoes to the drum, retarding speed and holding the load securely.
