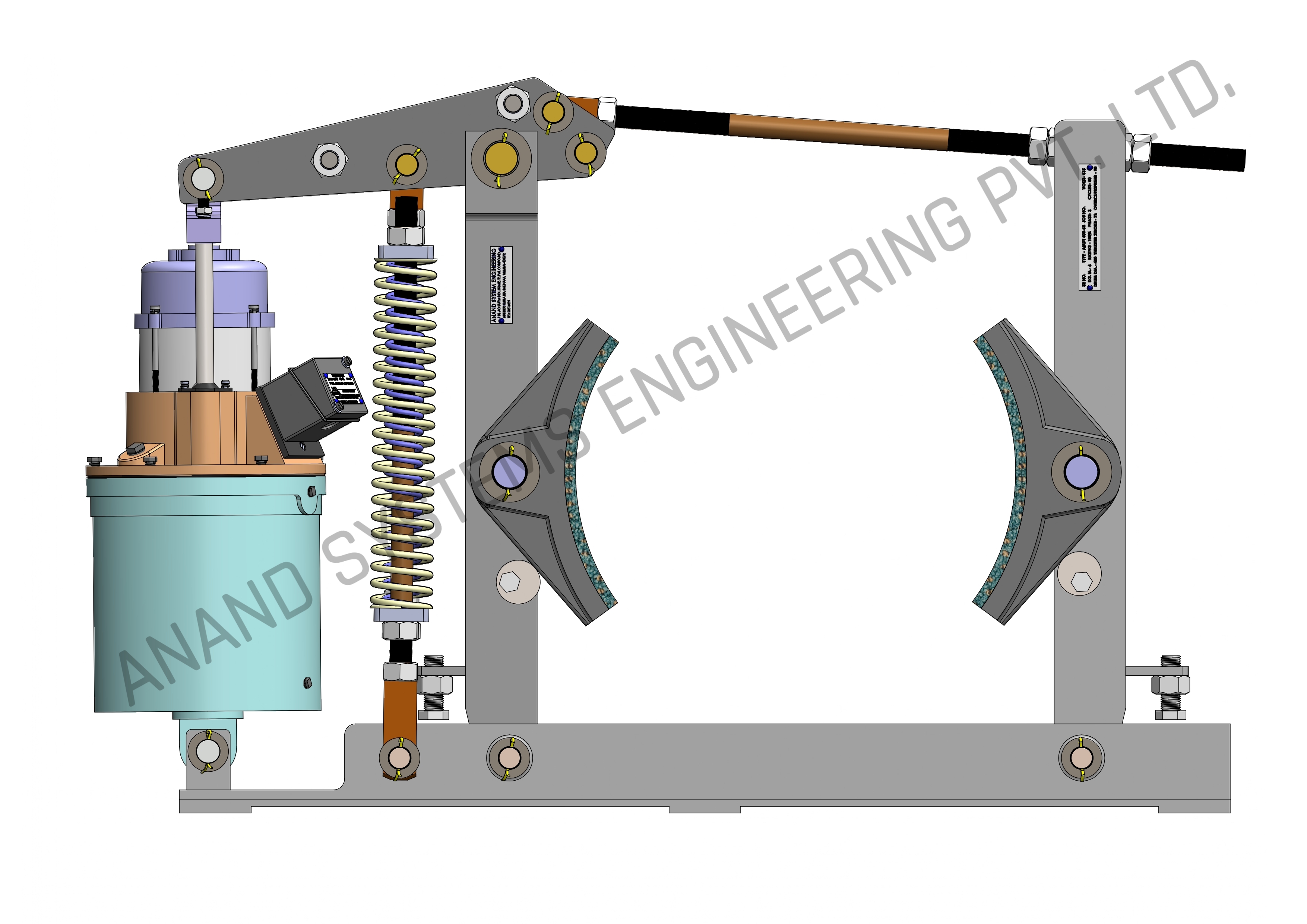

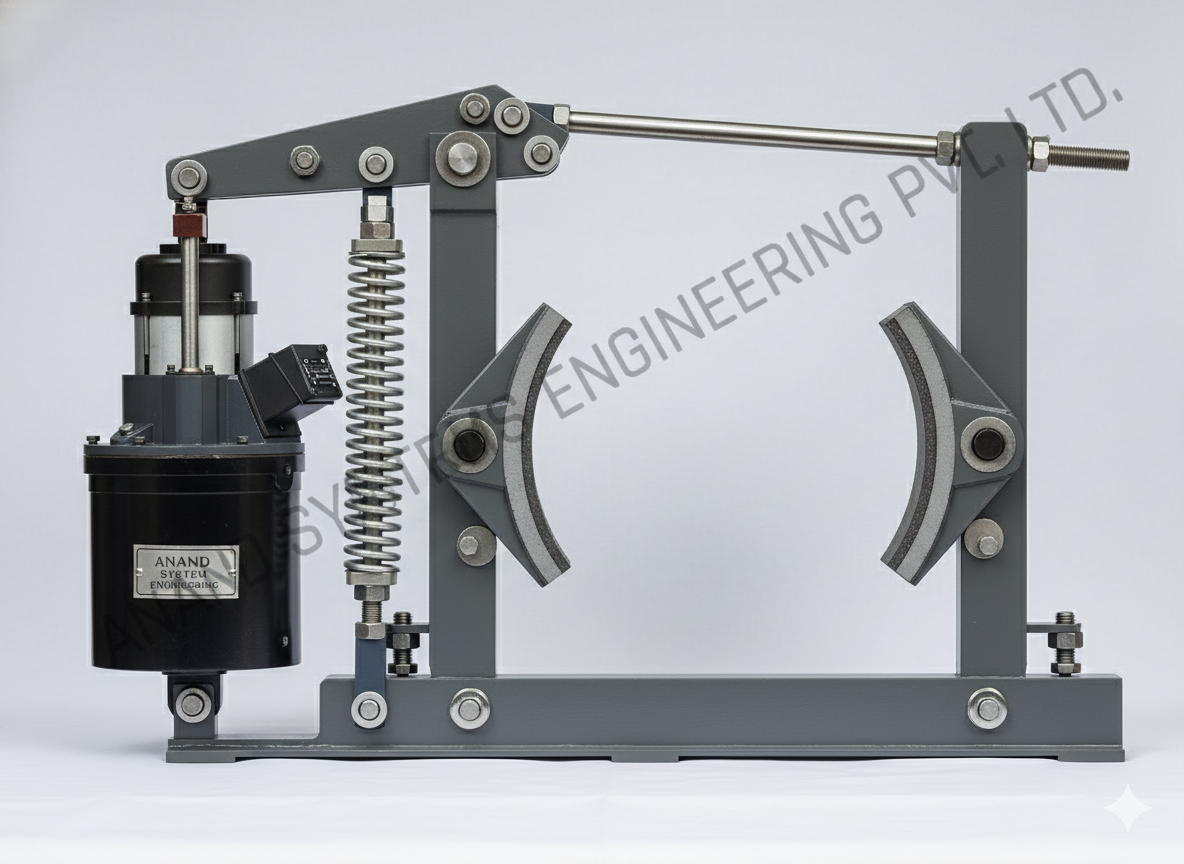

MDT 400-68 Mill Duty Thruster Brake (For 400mm Drum)
The ultimate fail-safe thruster brake, delivering maximum torque for the most critical applications.
- Maximum Braking Torque: Delivers an unparalleled 276 Kg-m of torque for absolute stopping power.
- Severe-Duty Frame: Engineered with an exceptionally robust, welded steel frame for extreme conditions.
- Maximum-Performance Thruster: Paired with the AT-870 (68 Kg) thruster for unmatched actuation force.
- High-Frequency Operation: Capable of up to 720 operations per hour, perfect for continuous and demanding use.
- Dust & Water Protection: IP-55 rated to guarantee reliability in the most challenging industrial settings.
Request a Quote for this Brake
Contact our engineering experts for pricing, technical support, and availability.

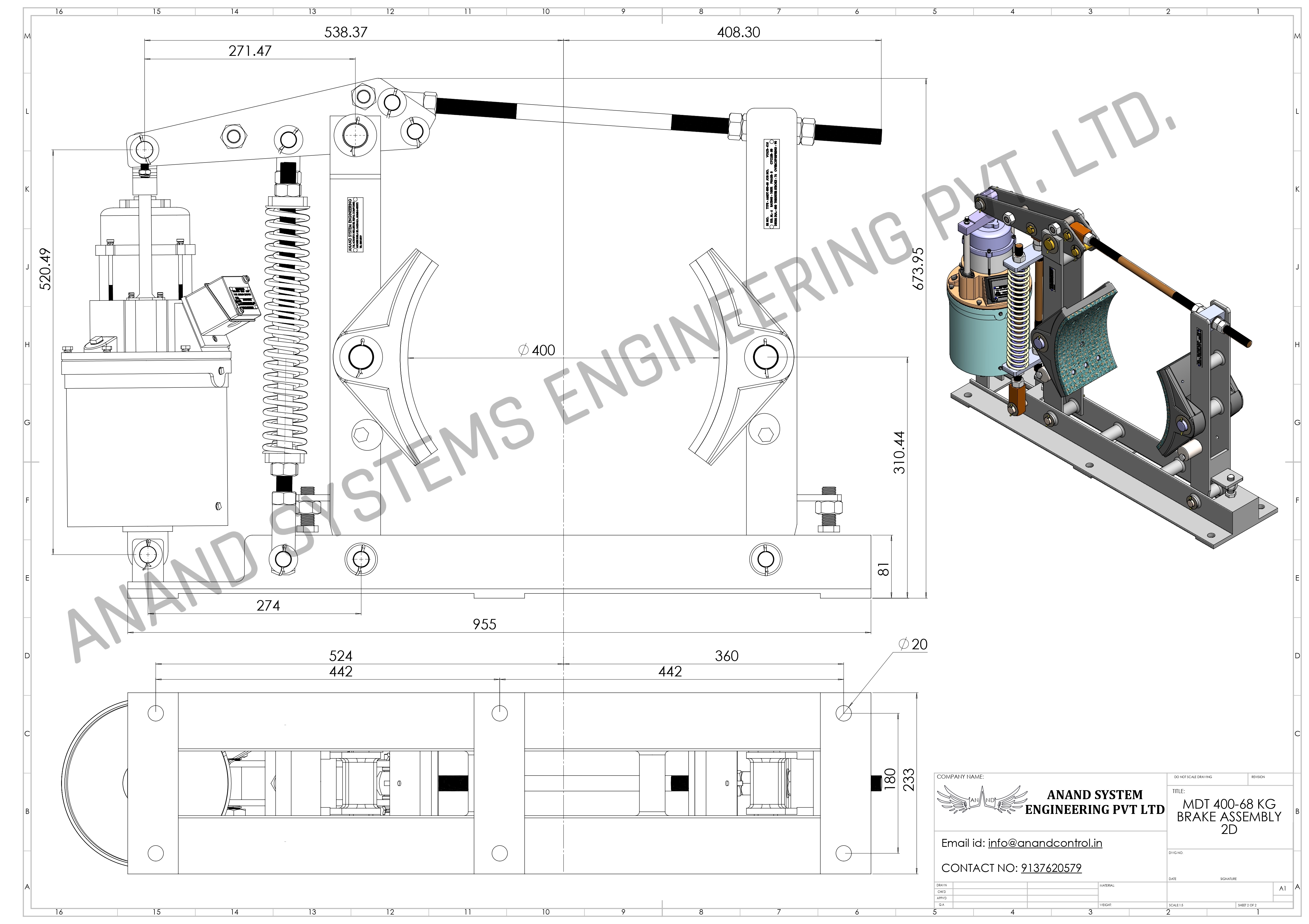

Call for Enquiry Download Catalog Download 2D Drawing
Includes 1-Year Manufacturer Warranty
Technical Details & Video
| Model | MDT 400-68 |
| Brake Drum Diameter | 400 mm |
| Thruster Model Used | AT-870 (68 Kg) |
| Braking Torque | 276 Kg-m |
| Operations per Hour | Up to 720 |
| IP Rating | IP-55 |
Working Principle
The MDT 400-68 Thruster Brake is a critical fail-safe component. Its operation relies on a pre-stressed compression spring that constantly applies braking force to the shoes. When power is delivered to the integrated electro-hydraulic thruster, it generates hydraulic pressure that overcomes the spring's force, retracting the brake shoes from the 400mm drum and allowing machinery to function. If power is interrupted, the thruster deactivates, and the spring's potential energy is instantly converted to braking force, ensuring the load is stopped and held securely.
