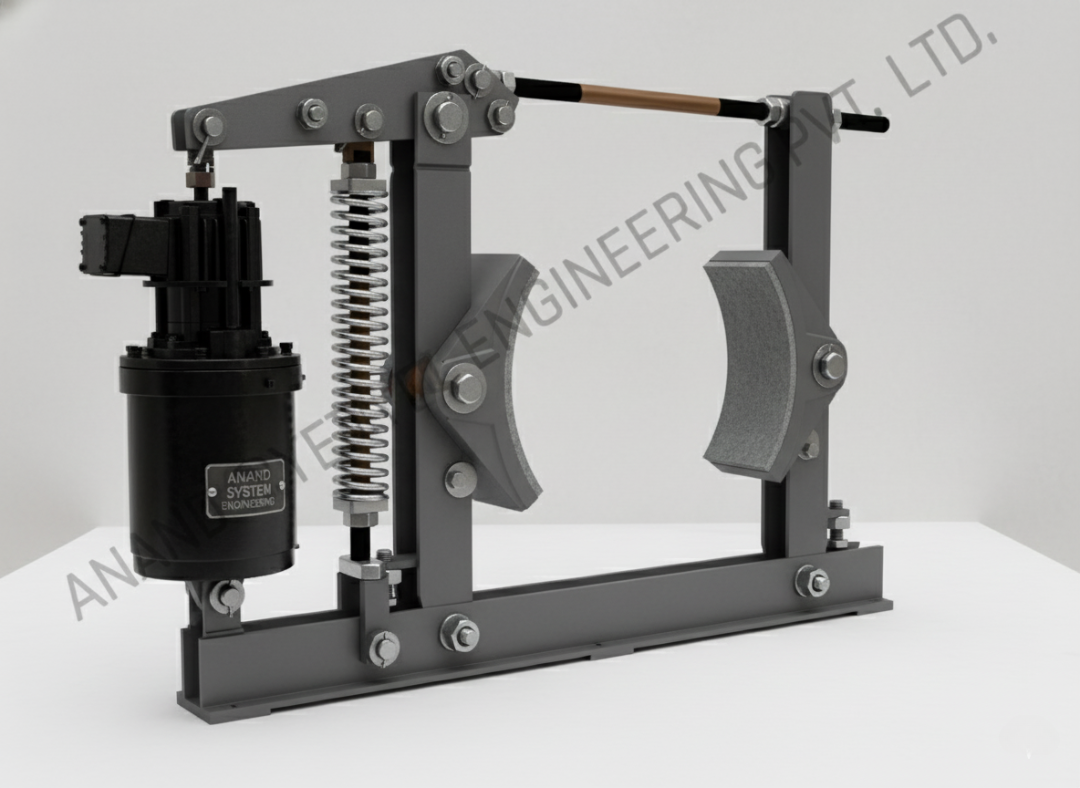

MDT 400-34 Mill Duty Thruster Brake (For 400mm Drum)
A high-performance, fail-safe thruster brake engineered for the most demanding industrial and mill duty applications.
- Superior Braking Torque: Delivers an impressive 138 Kg-m of torque.
- Heavy-Duty Frame: Robust, welded steel frame designed for maximum strength and durability.
- High-Performance Thruster: Paired with the AT-535 (34 Kg) thruster for powerful and reliable actuation.
- High-Frequency Operation: Capable of up to 720 operations per hour, ideal for high-cycle use.
- Dust & Water Protection: IP-55 rated to ensure long life in harsh environments.
Request a Quote for this Brake
Contact our team for the latest pricing, technical support, and availability.
Call for Enquiry Download Catalog Download 2D DrawingTechnical Details & Video
| Model | MDT 400-34 |
| Brake Drum Diameter | 400 mm |
| Thruster Model Used | AT-535 (34 Kg) |
| Braking Torque | 138 Kg-m |
| Operations per Hour | Up to 720 |
| IP Rating | IP-55 |
Working Principle
The MDT 400-34 Thruster Brake functions as a fail-safe system, crucial for ensuring safety in heavy lifting operations. The braking force is constantly applied to the brake shoes by a pre-stressed compression spring. When power is sent to the integrated electro-hydraulic thruster, it generates hydraulic pressure that counteracts the spring force, lifting the brake shoes clear of the 400mm drum and allowing the machinery to move. If power is cut, either intentionally or due to a power failure, the thruster de-energizes, and the spring's force instantly applies the brake shoes to the drum, safely retarding speed and holding the load securely.
