Brake Drum Coupling
Anand system offers Brake Drum and Brake Drum Couplings suitable for Electrohydraulic Thruster Brakes, Electromagnetic Brakes, Drum Brakes, and Shoe Type Solenoid Brakes for EOT Cranes, Overhead Cranes, Gantry Cranes, and Electric Wire Rope Hoists.
Brake Drum with Pin Bush Coupling, Brake Drum with Geared Coupling, and Brake Drum without Coupling are supplied as per customer requirements.
Download Brake Drums Brochure
Brake Drum with Coupling details:

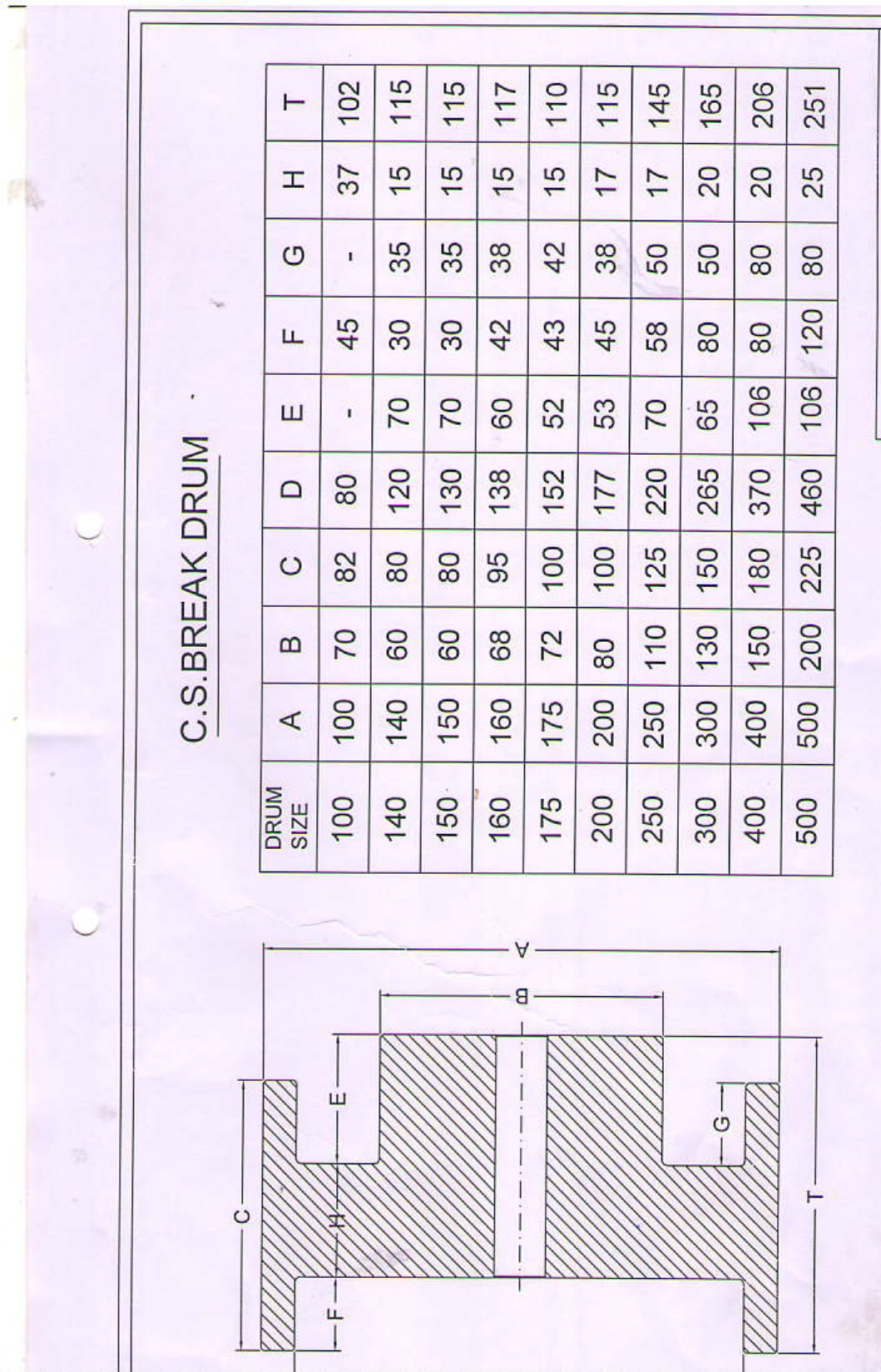

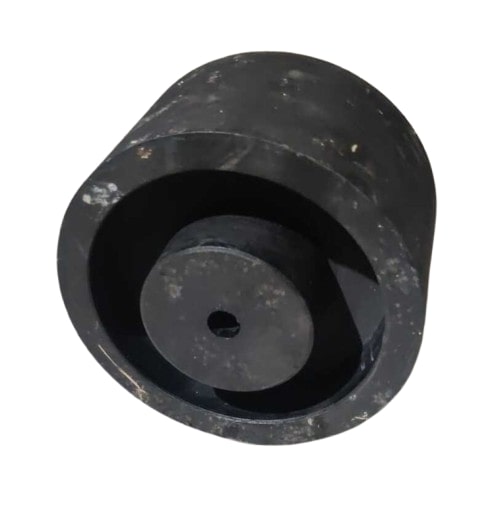

Anand system offers crane brake drum suitable for electro hydraulic thruster brakes, electromagnetic shoe type brakes, electromagnetic drum type brakes, in cast iron, cast steel or as per customer material specification. The Standard size of Brake Drum is given below. Other sizes are available on request. Brake drum is supplied with pilot bore if finished bore and key way is not given in the order.
Note: Price varies based on size, model, and specifications.
Anand system offers Lovejoy Full Geared Coupling and Half Geared Coupling in following sizes:
UTL UFG Couplings and UTL UHG Couplings:

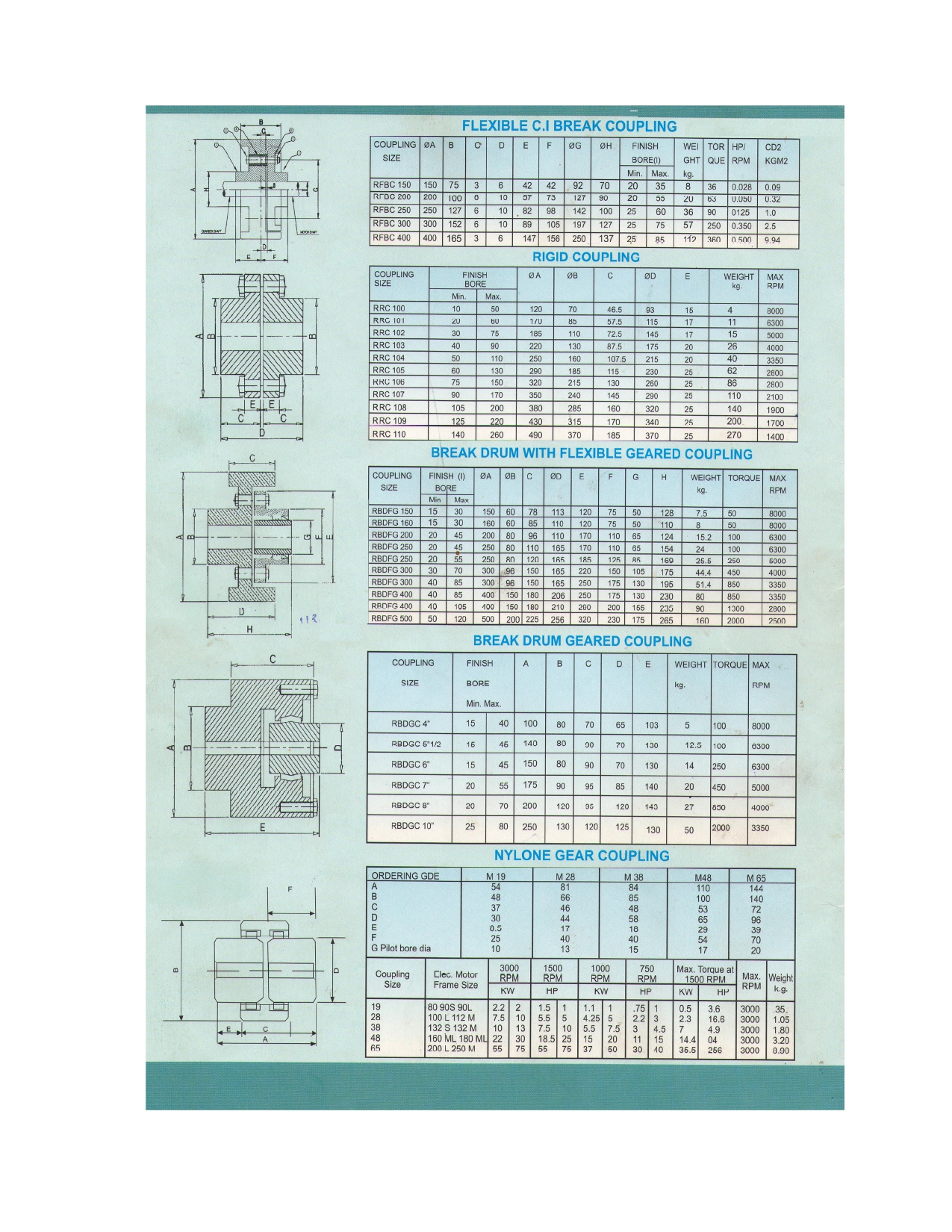

Flexible C.I. Break Coupling
| Coupling Size | ØA | B | C | D | E | ØF | ØG | ØH | Finish Bore ØH Min. | Finish Bore ØH Max. | Weight (kg) | Torque KGM² | HP / Max RPM | CD² KGM² |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RFBC 150 | 150 | 75 | 3 | 6 | 42 | 42 | 92 | 70 | 20 | 35 | 8 | 36 | 0.028 | 0.09 |
| RFBC 200 | 200 | 100 | 0 | 10 | 37 | 73 | 127 | 90 | 20 | 55 | 20 | 83 | 0.060 | 0.32 |
| RFBC 250 | 250 | 100 | 0 | 10 | 57 | 73 | 127 | 90 | 20 | 55 | 20 | 83 | 0.25 | 1.0 |
| RFBC 300 | 300 | 152 | 6 | 10 | 89 | 105 | 197 | 127 | 25 | 75 | 57 | 250 | 0.360 | 2.5 |
| RFBC 400 | 400 | 165 | 3 | 6 | 147 | 156 | 250 | 137 | 25 | 85 | 112 | 330 | 0.500 | 9.94 |
Rigid Coupling
| Coupling Size | Finish Bore Min. | Finish Bore Max. | ØA | ØB | C | ØD | E | Weight (kg) | Max RPM |
|---|---|---|---|---|---|---|---|---|---|
| RRC 100 | 10 | 50 | 120 | 70 | 46.6 | 93 | 15 | 4 | 8000 |
| RRC 101 | 20 | 60 | 170 | 85 | 57.5 | 115 | 17 | 11 | 6300 |
| RRC 102 | 30 | 75 | 185 | 110 | 72.5 | 145 | 17 | 15 | 5000 |
| RRC 103 | 40 | 90 | 220 | 130 | 87.5 | 175 | 20 | 26 | 4000 |
| RRC 104 | 50 | 110 | 250 | 160 | 107.5 | 215 | 20 | 40 | 3350 |
| RRC 105 | 60 | 130 | 290 | 185 | 115 | 230 | 20 | 62 | 2800 |
| RRC 106 | 75 | 150 | 320 | 215 | 130 | 260 | 25 | 86 | 2800 |
| RRC 107 | 90 | 170 | 350 | 240 | 145 | 290 | 25 | 110 | 2100 |
| RRC 108 | 105 | 200 | 380 | 285 | 160 | 320 | 25 | 140 | 1900 |
| RRC 109 | 125 | 220 | 430 | 315 | 170 | 340 | 25 | 200 | 1700 |
| RRC 110 | 40 | 260 | 490 | 370 | 185 | 370 | 25 | 270 | 1400 |
Break Drum with Flexible Geared Coupling
| Coupling Size | Finish Bore Min. | Finish Bore Max. | ØA | ØB | C | ØD | E | F | G | H | Weight (kg) | Torque KGM² | Max RPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RBDFC 150 | 15 | 30 | 150 | 60 | 78 | 113 | 120 | 75 | 50 | 128 | 7.5 | 50 | 8000 |
| RBDFC 160 | 15 | 30 | 160 | 60 | 85 | 110 | 120 | 75 | 50 | 110 | 8 | 50 | 8000 |
| RBDFC 200 | 20 | 45 | 200 | 80 | 96 | 110 | 170 | 110 | 65 | 124 | 15.2 | 100 | 6300 |
| RBDFC 250 | 20 | 45 | 250 | 80 | 110 | 165 | 170 | 110 | 65 | 154 | 24 | 100 | 6300 |
| RBDFC 250 | 20 | 55 | 250 | 80 | 120 | 165 | 170 | 75 | 85 | 160 | 25.5 | 250 | 5000 |
| RBDFC 300 | 30 | 70 | 300 | 96 | 150 | 165 | 185 | 125 | 105 | 175 | 44.4 | 450 | 4000 |
| RBDFC 300 | 40 | 85 | 300 | 96 | 150 | 165 | 250 | 150 | 130 | 195 | 51.4 | 850 | 3350 |
| RBDFC 400 | 40 | 85 | 400 | 150 | 180 | 206 | 250 | 75 | 130 | 230 | 80 | 850 | 3350 |
| RBDFC 400 | 40 | 105 | 400 | 150 | 180 | 210 | 200 | 75 | 155 | 235 | 90 | 1300 | 2800 |
| RBDFC 500 | 50 | 120 | 500 | 200 | 225 | 256 | 320 | 75 | 175 | 265 | 160 | 2000 | 2500 |
Brake Drum with Coupling details:

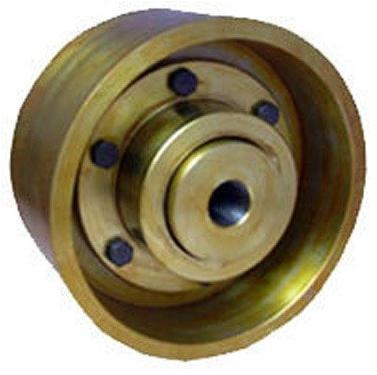

Anand system supply Brake Drum with Pin Bush Coupling suitable for Thruster Brakes, Electromagnetic Shoe Brakes, Solenoid Brakes, AC Shoe Brakes, DC Shoe Brakes and other Drum Brakes. • The brake drum coupling is used to connect the motor and gearbox shaft or gearbox and machine shaft. • The brake is fitted on the brake drum and thus, it serves dual purpose of being a coupling and brake drum. • Pin-bush type and has two parts: the brake drum and flange. • The Standard size of Brake Drum Coupling is 100, 150, 200, 250, 300, 400, 500, 600mm diameter. Nearest “INCH” converted drum diameter couplings are available on request. • Coupling is supplied with pilot bore if finished bore and key way is not given in the order.
