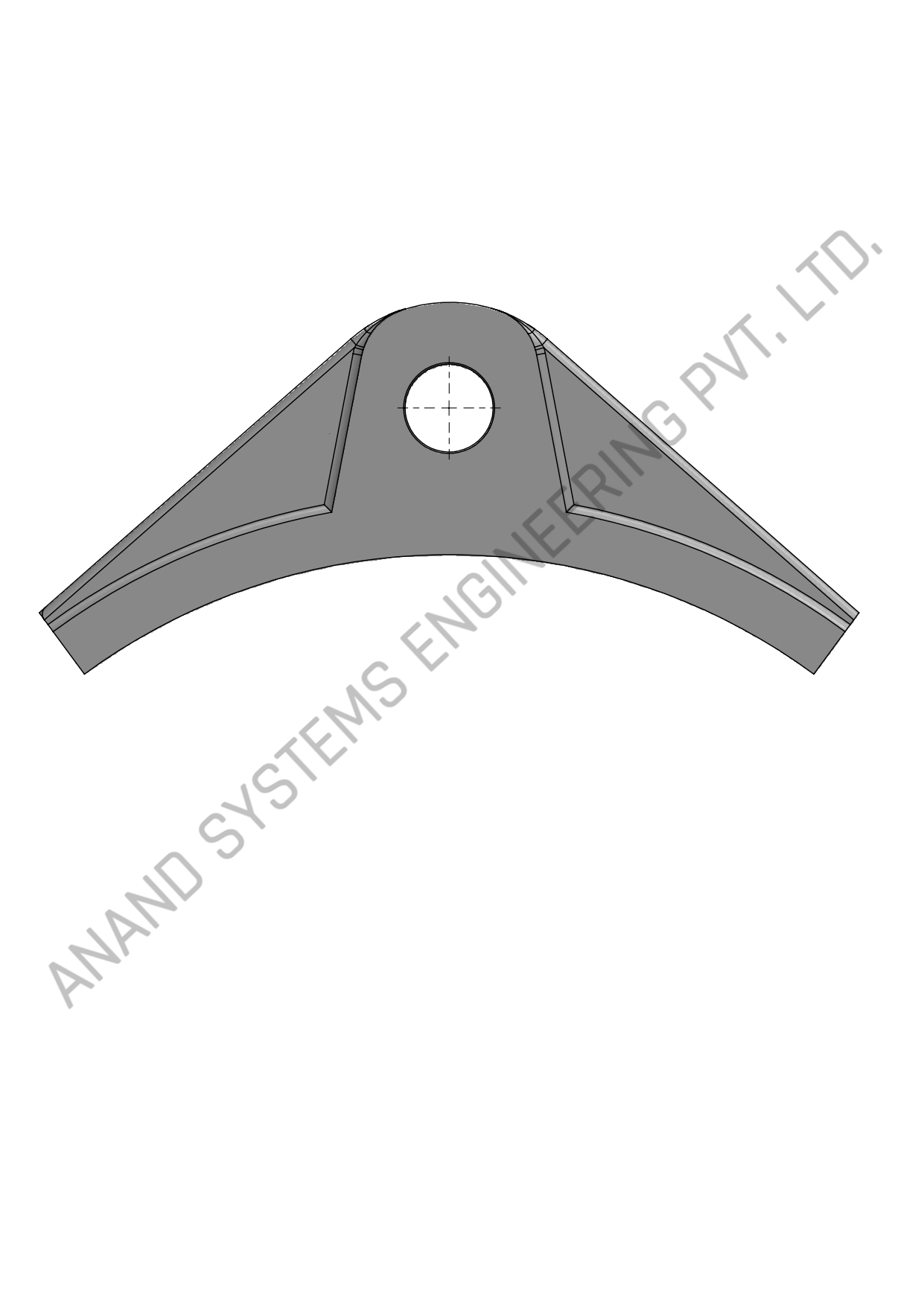

BRAKE SHOE WITH LINER 400MM
Brand: Anand ControlAbout this item:
- COMPLETE ASSEMBLY: A ready-to-install unit featuring a high-strength steel shoe with a pre-riveted friction liner.
- HIGH-STRENGTH STEEL SHOE: Provides a robust foundation and ensures proper alignment within the brake system.
- PREMIUM FRICTION LINER: Features a durable, non-asbestos composite for long service life and reliable stopping power.
- DIRECT REPLACEMENT: Engineered as a direct-fit replacement for 400mm thruster brake systems, minimizing downtime.
- 1-YEAR WARRANTY: Backed by a full manufacturer's warranty for your peace of mind.
Product Details & Specifications
Product Description
The Anand Control BSL-400MM is a complete brake shoe and liner assembly, designed for seamless integration into industrial brake systems. This unit combines a structurally sound steel brake shoe with a high-quality, pre-riveted friction liner. It serves as a critical component for converting hydraulic or mechanical force into the friction needed to safely stop heavy machinery. This pre-assembled unit simplifies maintenance and ensures reliable performance.
Related Components
This assembly is part of a larger braking system. Consider these related components for a complete overhaul:
Technical Specifications
| Brand | Anand Control |
|---|---|
| Model Number | BSL-400MM |
| Diameter | 400mm |
| Liner Material | High-Grade Non-Asbestos Friction Composite |
| Shoe Material | High-Strength Steel |
| Warranty | 1 Year from Dispatch Date |
| Country of Origin | India |
Brake Shoe & Friction Liner Specifications

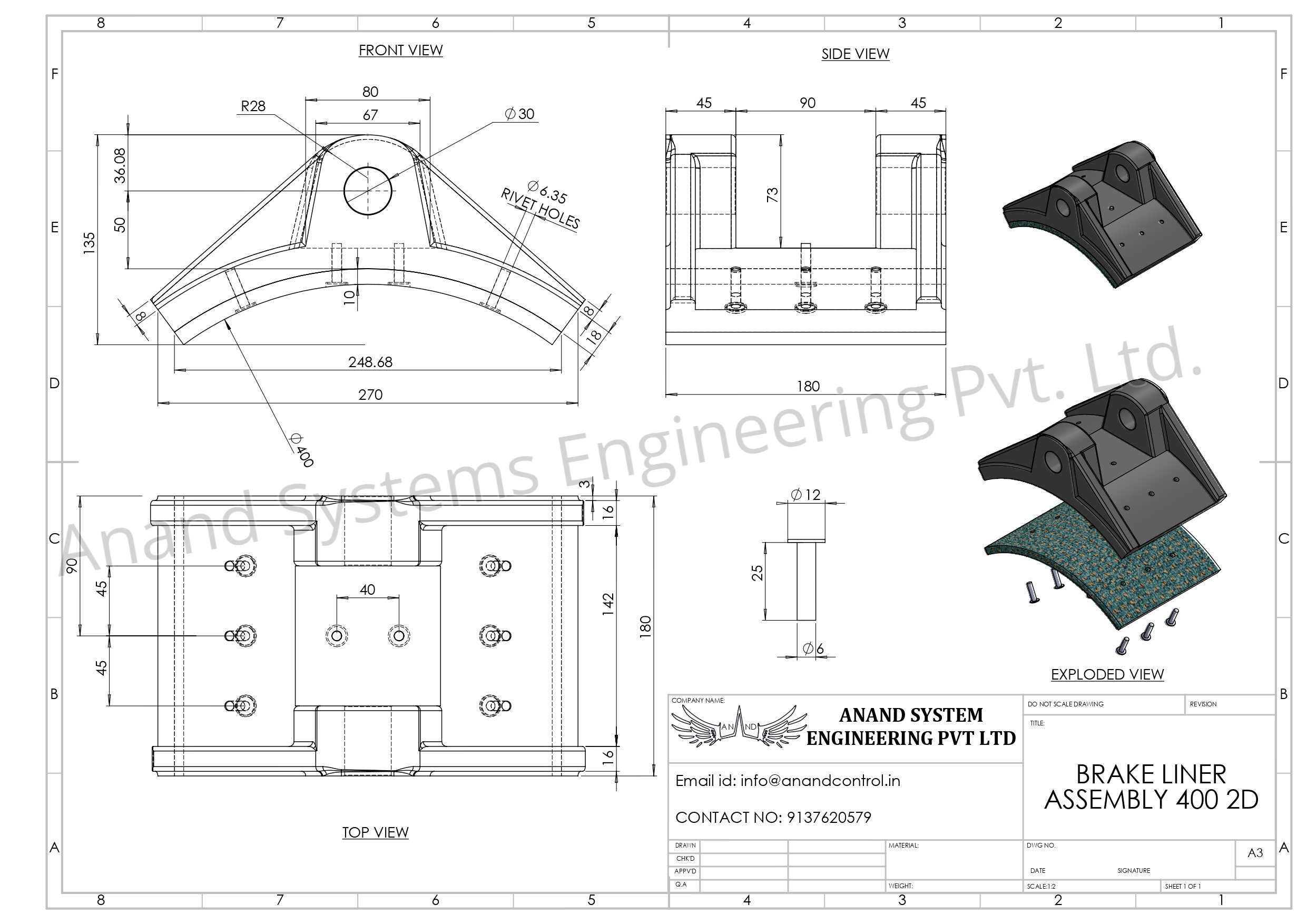

Anand Systems replacement brake shoes are manufactured from heavy-duty graded cast iron and fitted with high-friction curved brake linings. Engineered for uniform torque transmission, smooth braking deceleration and high thermal heat dissipation across heavy-duty crane duty cycles. This page covers the brake shoe and bonded friction liner for 400 mm diameter brake drums.
- Friction coefficient (μ): stable 0.35 – 0.40 dynamic friction.
- Fastening method: heavy-duty countersunk rivets provide strong mechanical bonding and prevent drum scoring.
- Thermal stability: high resistance to brake fade during repetitive inching and lowering cycles.
- Standard drum diameters: 100 mm, 150 mm, 160 mm, 200 mm, 250 mm, 300 mm and 400 mm — this page covers 400 mm.
- Maintenance tip: replace brake liners when worn down close to the rivet heads to ensure safe stopping distance.
