4 Button Dual Speed Radio Remote Control

Introduction

Model name: ARC-402

When artificially generated radio waves are used to control any type of machinery or equipment wirelessly, such kind of a control system is called a Radio Remote Control.

It typically consists of a transmitter device which radiates data in the form of a radio wave in free space with the help of an antenna towards the receiver. The receiver then picks up this signal with an antenna and decodes the data. Radio remote controls are completely wireless systems which can transmit and receive data over very long distances.

This Remote Control comes with 1 Transmitter and 1 Receiver

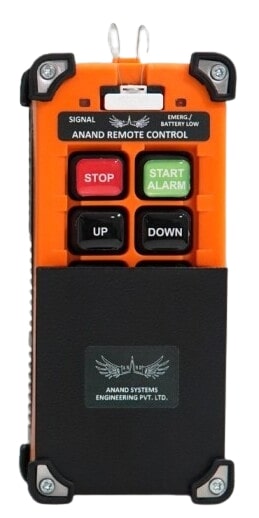

Transmitter :
1 Emergency Stop,Stop/Start Push Buttons,Up / Down Double Step Push Buttons Signal , Emergency and Low Battery Indications

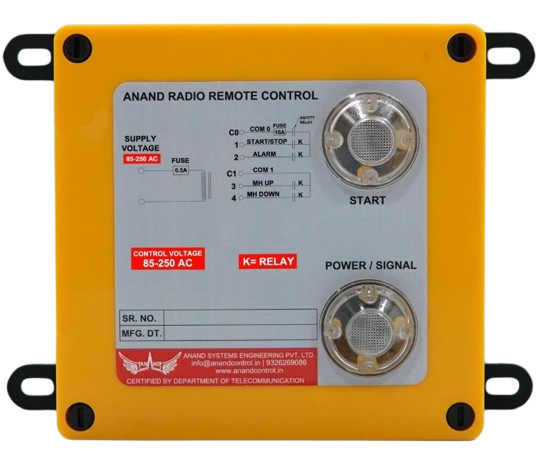

Receiver:
1 Start Relay , 1 Alarm Relay , 1 Safety relay in Series with Start Relay
1 Up Relay ,1 Down Relay , 1 Up/Down 2nd Step Relay
8 Core Cable to connect to the Control Panel
Signal , Power and Start relay Indications.

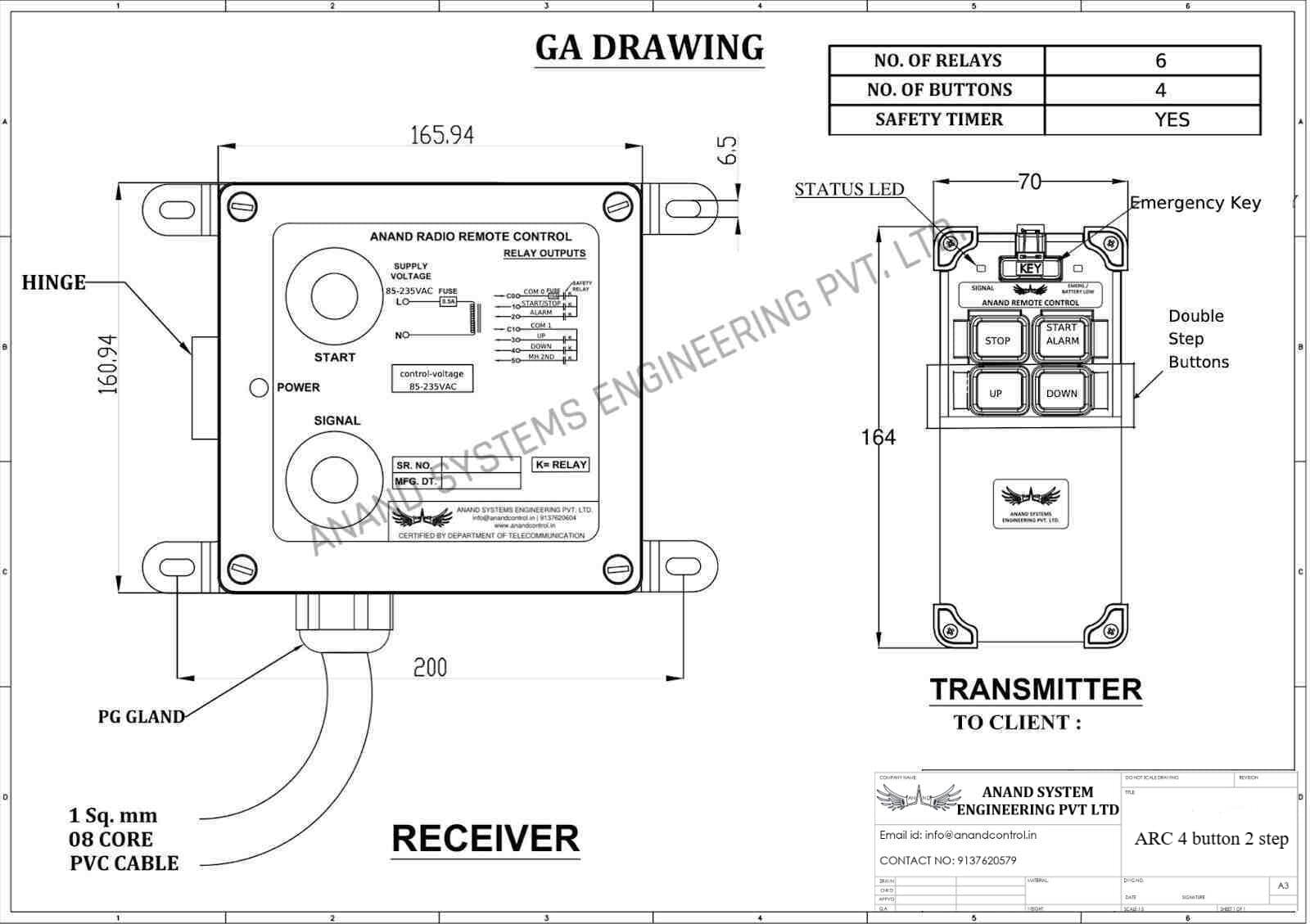

Wiring Diagram Sticker and Mounting Brackets

4_button_1_speed

Working of Radio Remote Control

Signal Received or transmitted by Antenna

Once the antenna has picked up the signal ,a band pass filter only allows the desired frequencies to pass while attenuating other frequencies .

Since many different radio waves are traveling through air at a given point of time, the antenna must be tuned to receive waves at the required frequency.

For example , an antenna tuned to 2.4ghz frequency will have a very low return loss at 2.4ghz and will exhibit a very high return loss at other frequencies .

For a monopole or Dipole Antenna, the length of the antenna depends on the wavelength of the desired frequency.

λ = c/f
λ = wavelength
C = Speed of light
F = desired frequency

4_button_1_speed
TANDEM-MODE

Features:

IP65 Certified-Water & DustProof
Internal Antenna protected from external environment
Signal,Power & Start Indications for transparent Operation
Wiring Diagram for easy installation
Receivers are Made of Tough Polycarbonate plastic

_button_2_speed

Technical Data:

Communication & Transmission Frequency
Frequency Band 2.4Ghz (Industrial ,Scientific & Medical )
Spread Spectrum Technology Direct Sequency Spread Spectrum
Number of Channels 16
Channel Bandwidth 2 Mhz
Co-Existance with multi Radios 100 Radios
Transmit Power Default:Auto Power
(configurable):-17dBm to +4dBm
Line of Sight Range 200 Meters
Communication Type Half Duplex Closed Loop
Reception Sensitivity -103 dBm

Warranty:

4 Button 2 Speed Radio Remote Control “2 years warranty” on the date of Dispatch
Contact us:
Get in touch with us at 91376-20579, info@anandcontrol.in or visit our website www.anandcontrol.in
Get Instant Quotation

Packing Details:

4 Button 2 Speed Radio Remote Control comes in a durable and eco-friendly Packing designed to ensure safe delivery.

1 Transmitter with 2 AA Alkaline Batteries
1 Receiver with 1.5 Meters Cable
1 Test Report , 1 Wiring Diagram, 1 Delivery Challan, 1 Tax Invoice

ARC_6_BUTTON_CHECKING_WITH_PACKING_BOX
ARC_6_BUTTON_PACKING_BOX
